252135
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
MCX Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line), Right Angle Solder
PDF
/
Buying Options
Total Price: USD $10.84
Unit Price: USD $10.84274
≥1 USD $10.84274
≥10 USD $10.229
≥100 USD $9.65
Inventory: 300
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Length 8.6mm
Technical
Shield Termination Solder
Cable Group RG-178, 178A, 178B, 196, 196A, M17/93-RG178
Body Finish Gold
Insertion Loss 0.1dB

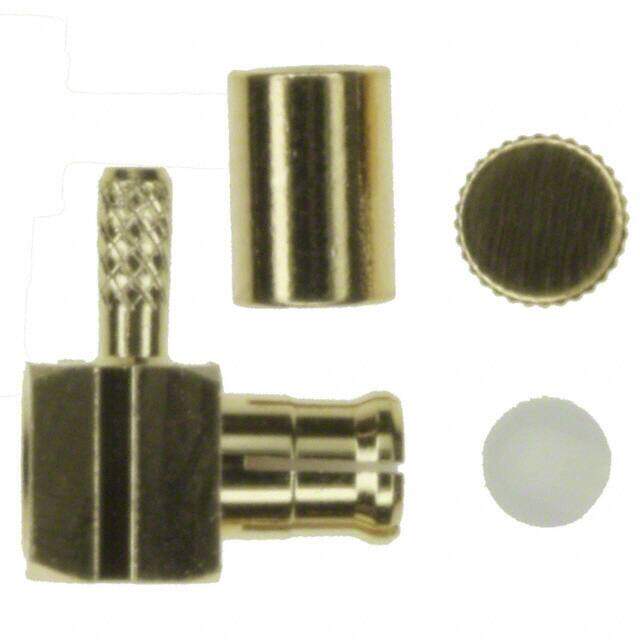

Includes 4 pcs - 1 Connector, 1 End Cap, 1 Ferrule, 1 Insulator
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 6GHz
Body Plating Gold
Number of Ports 1
Connector Style MCX
Impedance 50Ohm
Housing Color Gold
Frequency 6Hz
Depth 5mm
Orientation Right Angle
Fastening Type Snap-On
Voltage - Rated 225V
Gender Male
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Plug, Male Pin
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2008
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Center Contact Material Brass
Center Contact Plating Gold
Body Material Beryllium Copper
Weight 2.920001g
Dielectric Material Polyoxymethylene (POM) Acetal, Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Mounting Type Free Hanging (In-Line), Right Angle
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Brass
Supply Chain
Factory Lead Time 9 Weeks
