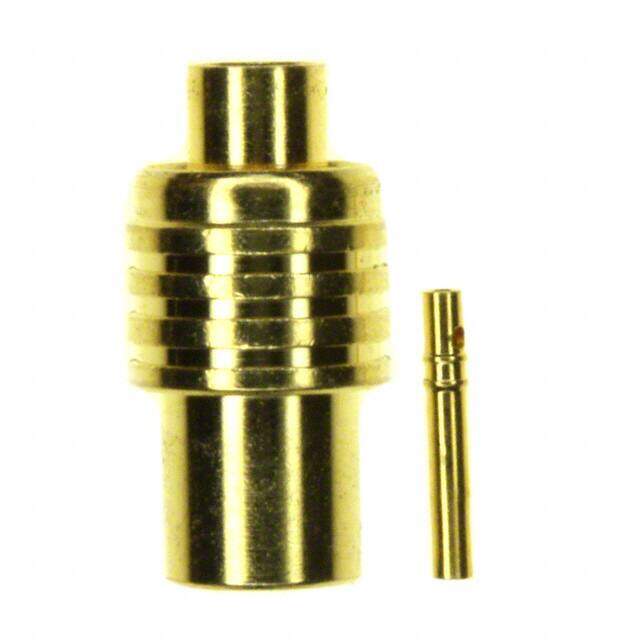

252131 image
Favorite
252131 image
Favorite

252131

Amphenol RF
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description Coaxial Connector
PDF
/
Inventory: 4904
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Length 11.86mm

Technical

Shield Termination Solder
Cable Group RG-405 (.085, .086 Semi Rigid)
Body Finish Gold
Insertion Loss 0.1dB
Includes 2 pcs - 1 Connector, 1 Contact
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 6GHz
Body Plating Gold
Number of Ports 1
Connector Style MCX
Impedance 50Ohm
Housing Color Gold
Frequency 6GHz
Orientation Straight
Fastening Type Snap-On
Voltage - Rated 225V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Jack, Female Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2008
Packaging Bulk

Physical

Center Contact Material Beryllium Copper
Center Contact Plating Gold
Body Material Brass
Weight 2.799997g
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Copper

Supply Chain

Factory Lead Time 8 Weeks
