252129
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

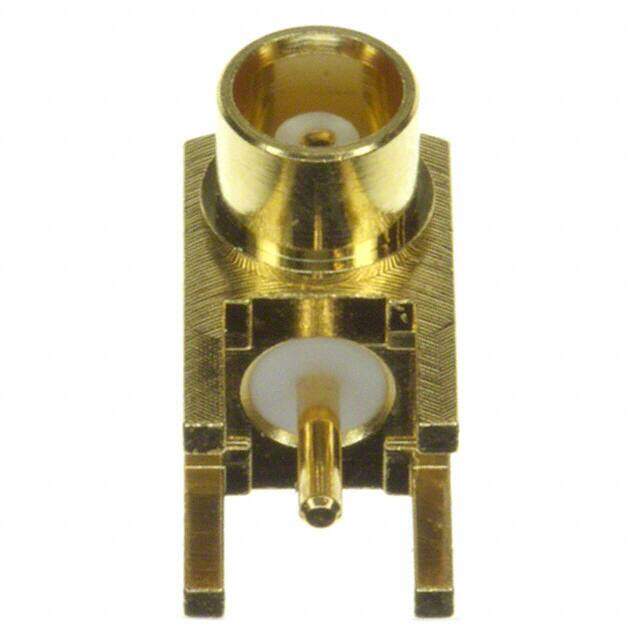

CONN MCX RCPT R/A 50 OHM PCB
PDF
/
Buying Options
Total Price: USD $6
Unit Price: USD $6.0016
≥1 USD $6.0016
≥10 USD $5.4252
≥100 USD $5.124768
≥500 USD $4.999808
≥1000 USD $4.7498
≥3000 USD $4.249846
Inventory: 3197
Minimum: 1
-
+
Technical Details
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Length 6mm
Technical
Shield Termination Solder
Body Finish Gold
Insertion Loss 0.1dB
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 6GHz
Body Plating Gold
Number of Ports 1
Connector Style MCX
Impedance 50Ohm
Housing Color Gold
Frequency 6GHz
Depth 9.5mm
Orientation Right Angle
Fastening Type Snap-On
Voltage - Rated 225V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Receptacle, Female Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2007
Packaging Bulk
Physical
Center Contact Material Beryllium Copper
Center Contact Plating Gold
Body Material Brass
Weight 1.759995g
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Mounting Type Through Hole, Right Angle
Mount PCB, Through Hole
Contact Plating Gold
Contact Material Copper
Supply Chain
Factory Lead Time 8 Weeks
