252127
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

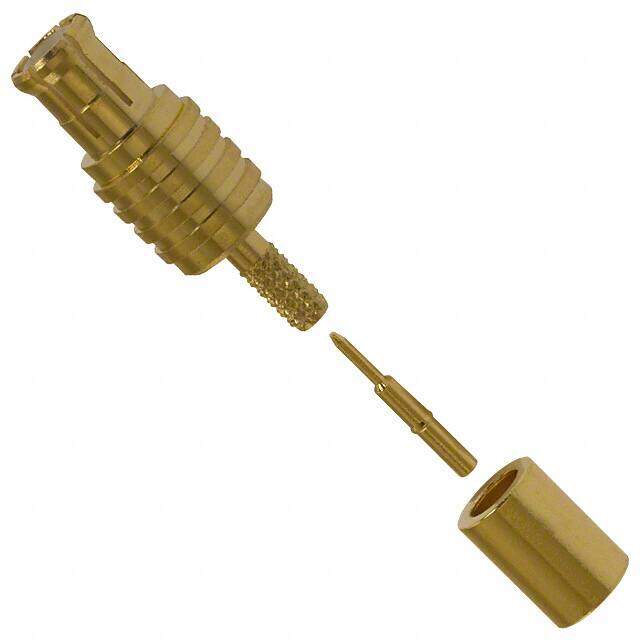

MCX Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line) Solder
PDF
/
Buying Options
Total Price: USD $6.3
Unit Price: USD $6.29604
≥1 USD $6.29604
≥10 USD $5.939663
≥100 USD $5.603456
≥500 USD $5.286283
≥1000 USD $4.987058
Inventory: 6041
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Length 14.7mm
Technical
Shield Termination Crimp
VSWR 1.3
Cable Group RG-178, 178A, 178B, 196, 196A, M17/93-RG178
Insertion Loss 0.1dB
Includes 4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Spacer
Insulator Color NATURAL
Contact Termination Solder
Mating Cycles 500
Number of Ports 1
Connector Style MCX
Impedance 50Ohm
Contact Resistance 5mOhm
Contact Style COAX
Reliability COMMERCIAL
Frequency 6GHz
Orientation Straight
Total Number of Contacts 1
Option GENERAL PURPOSE
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Fastening Type Snap-On
Voltage - Rated 225V
Connector Type Plug, Male Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e4
Published 2002
Packaging Bulk
Operating Temperature -55°C~155°C
Physical
Center Contact Material Brass
Center Contact Plating Gold
Body Material Beryllium Copper
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Supply Chain
Factory Lead Time 9 Weeks
