252123

Amphenol RF
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Coaxial Connectors (RF)

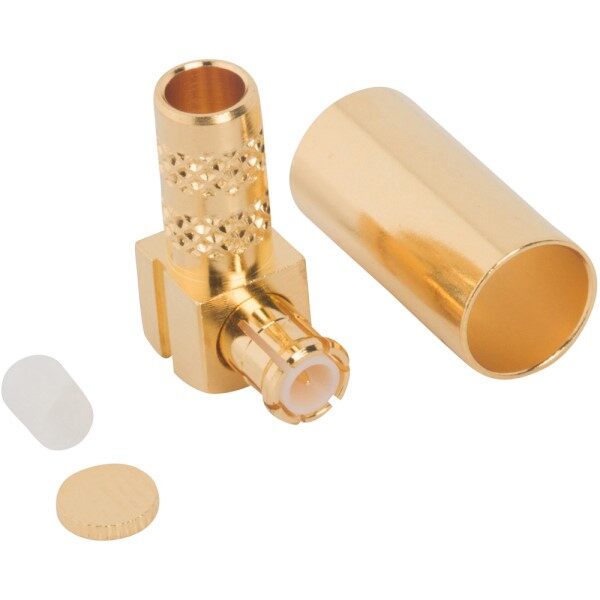

Description CONN MCX PLUG R/A 50OHM SOLDER
PDF
/
Buying Options
Total Price: USD $8.93
Unit Price: USD $8.925387
≥1 USD $8.925387
≥10 USD $8.420176
≥100 USD $7.94356
≥500 USD $7.493928
≥1000 USD $7.069745
Inventory: 3079
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Length 9.2mm

Technical

Shield Termination Crimp
Cable Group RG-55, 142, 223, 400
Body Finish Gold
Insertion Loss 0.1dB
Includes 4 pcs - 1 Connector, 1 End Cap, 1 Ferrule, 1 Insulator
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 6GHz
Body Plating Gold
Number of Ports 1
Connector Style MCX
Impedance 50Ohm
Polarity Standard
Housing Color Gold
Frequency 6GHz
Depth 5mm
Orientation Right Angle
Fastening Type Snap-On
Voltage - Rated 225V
Gender Male
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Plug, Male Pin
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2009
Packaging Bulk

Physical

Center Contact Material Brass
Center Contact Plating Gold
Body Material Beryllium Copper
Dielectric Material Polyoxymethylene (POM) Acetal, Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Mounting Type Free Hanging (In-Line), Right Angle
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Brass

Supply Chain

Factory Lead Time 9 Weeks
