252120

Amphenol RF
RoHS
RoHS RoHS compliant
Package 316
Category Connectors, Interconnects / Coaxial Connectors (RF)

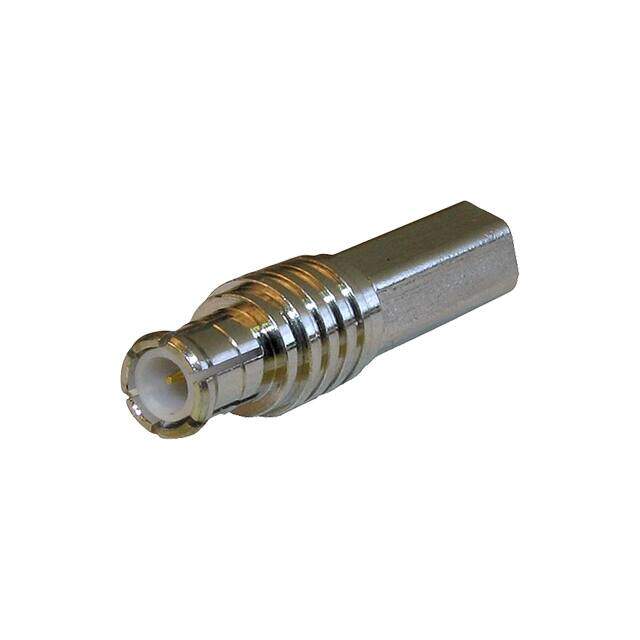

Description RF Connectors / Coaxial Connectors MCX ST CRIMP PLUG 316 DBL BRAID NIC
PDF
/
Buying Options
Total Price: USD $5.39
Unit Price: USD $5.393606
≥1 USD $5.393606
≥10 USD $5.08831
≥100 USD $4.800295
≥500 USD $4.528579
≥1000 USD $4.272238
Inventory: 9579
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Length 15.2mm

Technical

Shield Termination Crimp
Cable Group RG-179, 188, 316 Double Braid, M17/152-RD316
Body Finish Nickel
Insertion Loss 0.1dB
Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Contact Termination Crimp
Mating Cycles 500
Frequency (Max) 6GHz
Body Plating Nickel
Number of Ports 1
Connector Style MCX
Impedance 50Ohm
Housing Color Silver
Frequency 6GHz
Orientation Straight
Fastening Type Snap-On
Voltage - Rated 225V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Plug, Male Pin
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2008
Packaging Bulk

Physical

Center Contact Material Brass
Center Contact Plating Gold
Body Material Beryllium Copper
Weight 2.799997g
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Package / Case 316
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Brass

Supply Chain

Factory Lead Time 9 Weeks
