252117
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

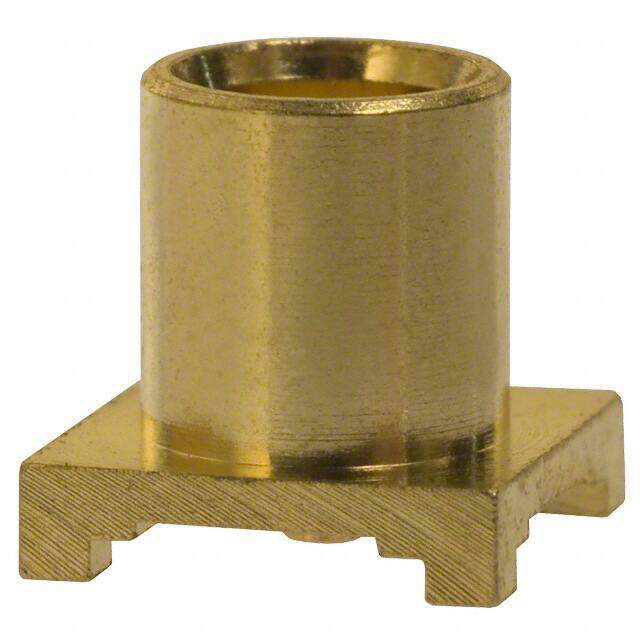

MCX Connector Receptacle, Female Socket 50 Ohm Surface Mount Solder
PDF
/
Buying Options
Total Price: USD $6.56
Unit Price: USD $6.556
≥1 USD $6.556
≥10 USD $5.93032
≥100 USD $5.60208
≥500 USD $5.465504
≥1000 USD $5.192176
≥3000 USD $4.645634
Inventory: 152
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Length 6mm
Technical
VSWR 1.3
Insertion Loss 0.1dB
Contact Termination Solder
Mating Cycles 500
Number of Ports 1
Connector Style MCX
Impedance 50Ohm
Frequency 6GHz
Depth 6mm
Orientation Straight
Option GENERAL PURPOSE
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Fastening Type Snap-On
Voltage - Rated 225V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Receptacle, Female Socket
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e4
Published 2004
Packaging Bulk
Physical
Center Contact Material Beryllium Copper
Center Contact Plating Gold
Body Material Brass
Weight 400.011771mg
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Teflon
Mounting Type Surface Mount
Mount PCB, Surface Mount, Through Hole
Contact Material Copper
Supply Chain
Factory Lead Time 9 Weeks
