252109

Amphenol RF
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Coaxial Connectors (RF)

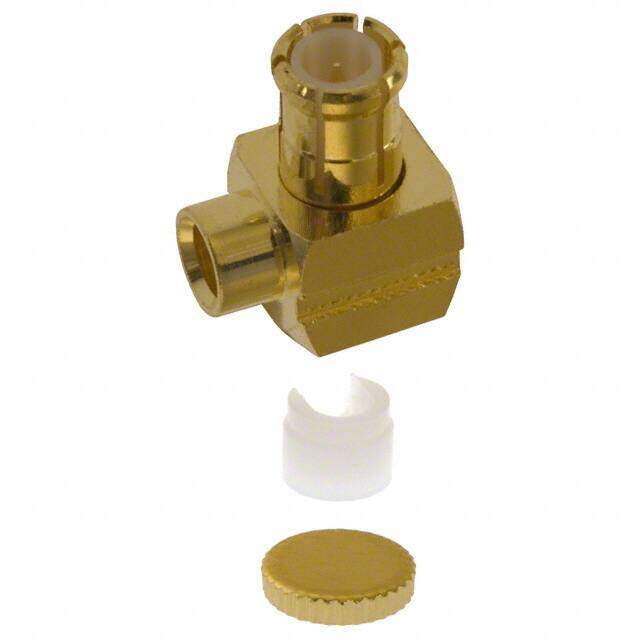

Description MCX Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line), Right Angle Solder
PDF
/
Buying Options
Total Price: USD $8.61
Unit Price: USD $8.6064
≥1 USD $8.6064
≥10 USD $7.74312
≥100 USD $7.294144
≥500 USD $7.107056
≥1000 USD $6.919968
≥3000 USD $6.17188
Inventory: 107
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No

Dimensions

Length 9.2mm

Technical

Shield Termination Solder
Cable Group RG-405 (.085, .086 Semi Rigid)
Body Finish Gold
Insertion Loss 0.1dB
Includes 3 pcs - 1 Connector, 1 End Cap, 1 Insulator
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 6GHz
Body Plating Gold
Number of Ports 1
Connector Style MCX
Impedance 50Ohm
Housing Color Gold
Frequency 6GHz
Depth 5mm
Orientation Right Angle
Fastening Type Snap-On
Voltage - Rated 225V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Plug, Male Pin
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2003
Packaging Bulk

Physical

Center Contact Material Brass
Center Contact Plating Gold
Body Material Brass
Weight 850.003752mg
Dielectric Material Polyoxymethylene (POM) Acetal, Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Mounting Type Free Hanging (In-Line), Right Angle
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Brass

Supply Chain

Factory Lead Time 8 Weeks
