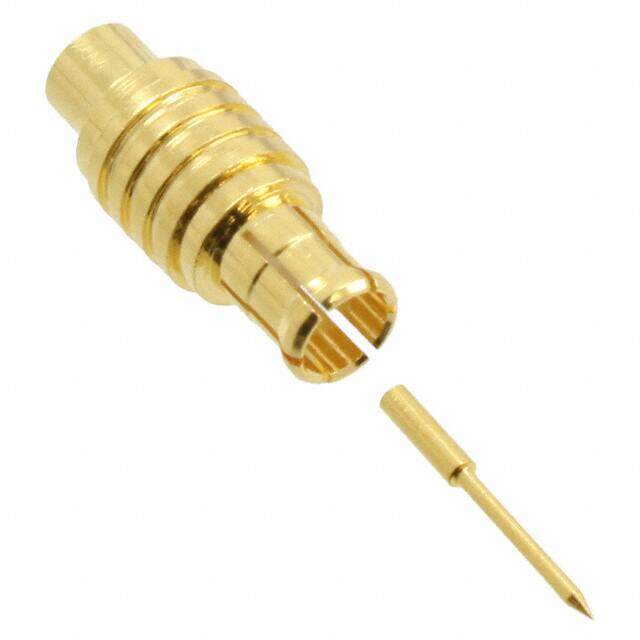

252107-75
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
MCX Connector Plug, Male Pin 75 Ohm Free Hanging (In-Line) Solder
PDF
/
Buying Options
Total Price: USD $3.48
Unit Price: USD $3.4848
≥1 USD $3.4848
≥10 USD $3.16272
≥100 USD $2.99552
≥500 USD $2.926
≥1000 USD $2.786608
≥3000 USD $2.453
Inventory: 86
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Brass, Copper
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 1.361996g
Body Material Beryllium Copper
Center Contact Plating Gold
Center Contact Material Brass
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2011
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pin
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 335V
Fastening Type Snap-On
Orientation Straight
Frequency 6GHz
Housing Color Gold
Insulation Resistance 5GOhm
Impedance 75Ohm
Connector Style MCX
Number of Ports 1
Body Plating Gold
Frequency (Max) 6GHz
Mating Cycles 500
Contact Termination Solder
Includes 2 pcs - 1 Connector, 1 Contact
Insertion Loss 0.1dB
Body Finish Gold
Cable Group RG-405 (.085, .086 Semi Rigid)
Shield Termination Solder
Dimensions
Length 12.7mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
