252107
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

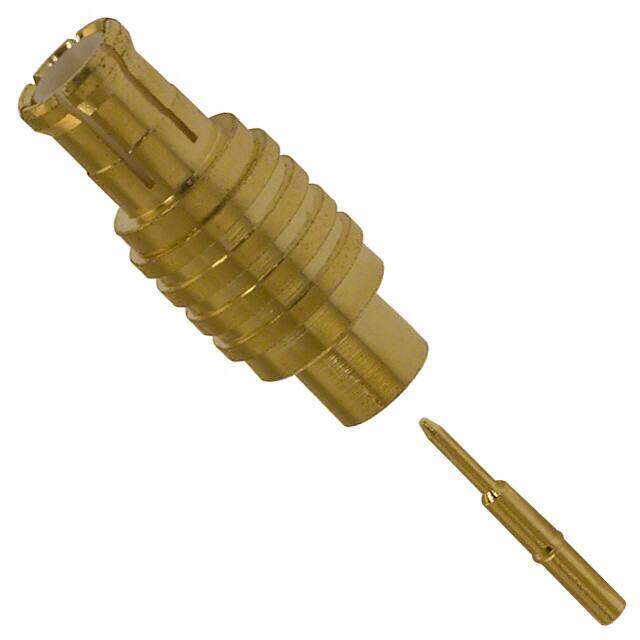

MCX Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line) Solder
PDF
/
Buying Options
Total Price: USD $5.83
Unit Price: USD $5.8256
≥1 USD $5.8256
≥10 USD $5.28968
≥100 USD $5.010368
≥500 USD $4.893856
≥1000 USD $4.66092
≥3000 USD $4.078272
Inventory: 900
Minimum: 1
-
+
Technical Details
Technical
Insulation Resistance 5GOhm
Impedance 50Ohm
Connector Style MCX
Number of Ports 1
Body Plating Gold
Frequency (Max) 6GHz
Mating Cycles 500
Contact Termination Solder
Includes 2 pcs - 1 Connector, 1 Contact
Insertion Loss 0.1dB
Body Finish Gold
Cable Group RG-405 (.085, .086 Semi Rigid)
Insertion Loss (dB) 0.1 dB
Shield Termination Solder
Housing Color Gold
Frequency 6GHz
Orientation Straight
Fastening Type Snap-On
Voltage - Rated 225V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Plug, Male Pin
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2003
Packaging Bulk
Dimensions
Length 12.7mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
Physical
Center Contact Material Brass
Center Contact Plating Gold
Body Material Beryllium Copper
Weight 700.006425mg
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Teflon
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Brass
Supply Chain
Factory Lead Time 9 Weeks
