252103
RoHS
RoHS compliant
RoHS compliantPackage 316
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

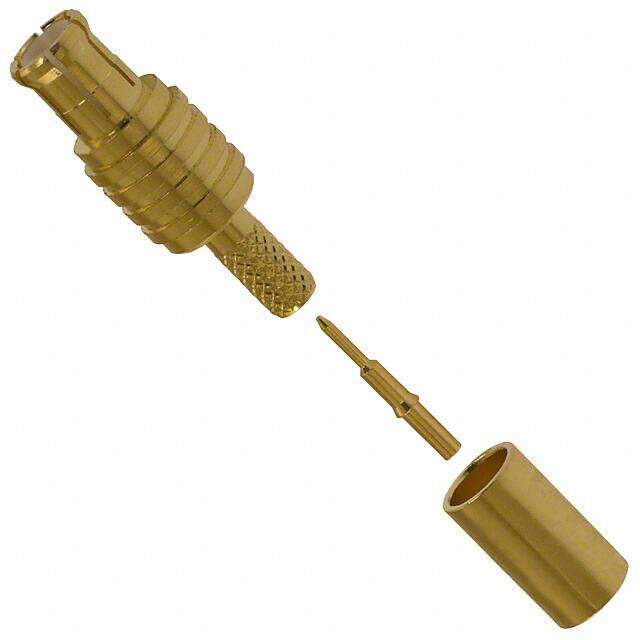

MCX Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line) Solder
PDF
/
Buying Options
Total Price: USD $6.9
Unit Price: USD $6.8992
≥1 USD $6.8992
≥10 USD $6.2348
≥100 USD $5.889664
≥500 USD $5.746048
≥1000 USD $5.458728
≥3000 USD $4.88415
Inventory: 159
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Package / Case 316
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 1.000001g
Body Material Beryllium Copper
Center Contact Plating Gold
Center Contact Material Brass
Technical
Packaging Bulk
Published 2001
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Plug, Male Pin
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Gender Male
Voltage - Rated 225V
Fastening Type Snap-On
Orientation Straight
Frequency 6GHz
Housing Color Gold
Insulation Resistance 5GOhm
Impedance 50Ohm
Connector Style MCX
Number of Ports 1
Body Plating Gold
Frequency (Max) 6GHz
Mating Cycles 500
Contact Termination Solder
Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Insertion Loss 0.1dB
Body Finish Gold
Cable Group RG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Insertion Loss (dB) 0.1 dB
Shield Termination Crimp
Dimensions
Length 15.2mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
