252102
RoHS
RoHS compliant
RoHS compliantPackage 316
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
MCX Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line), Right Angle Solder
PDF
/
Buying Options
Total Price: USD $7.94
Unit Price: USD $7.9376
≥1 USD $7.9376
≥10 USD $7.14472
≥100 USD $6.73024
≥500 USD $6.557584
≥1000 USD $6.385016
≥3000 USD $5.694744
Inventory: 354
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Length 8.6mm
Technical
Shield Termination Crimp
Insertion Loss (dB) 0.1 dB
Cable Group RG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Body Finish Gold
Insertion Loss 0.1dB

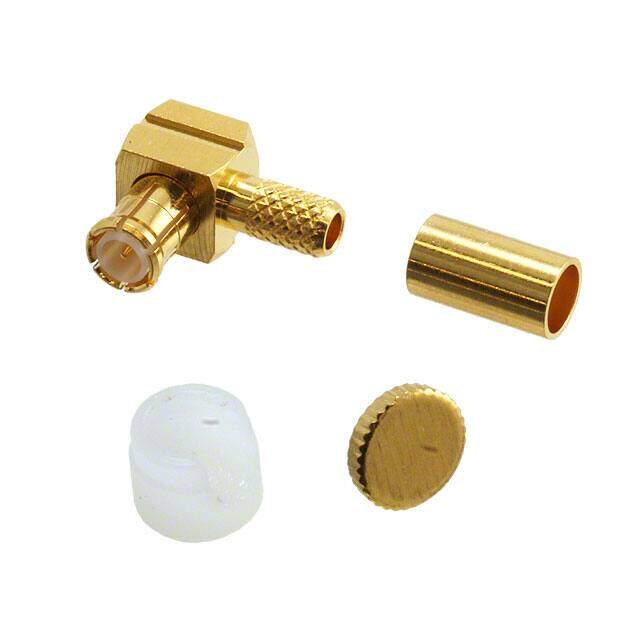

Includes 4 pcs - 1 Connector, 1 End Cap, 1 Ferrule, 1 Insulator
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 6GHz
Body Plating Gold
Number of Ports 1
Connector Style MCX
Impedance 50Ohm
Insulation Resistance 5GOhm
Housing Color Gold
Frequency 6GHz
Orientation Right Angle
Fastening Type Snap-On
Voltage - Rated 225V
Gender Male
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Plug, Male Pin
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2001
Packaging Bulk
Physical
Center Contact Material Brass
Center Contact Plating Gold
Body Material Beryllium Copper
Weight 2.000002g
Dielectric Material Polyoxymethylene (POM) Acetal, Polytetrafluoroethylene (PTFE)
Insulation Material Teflon
Package / Case 316
Mounting Type Free Hanging (In-Line), Right Angle
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Brass
Supply Chain
Factory Lead Time 8 Weeks
