222180
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

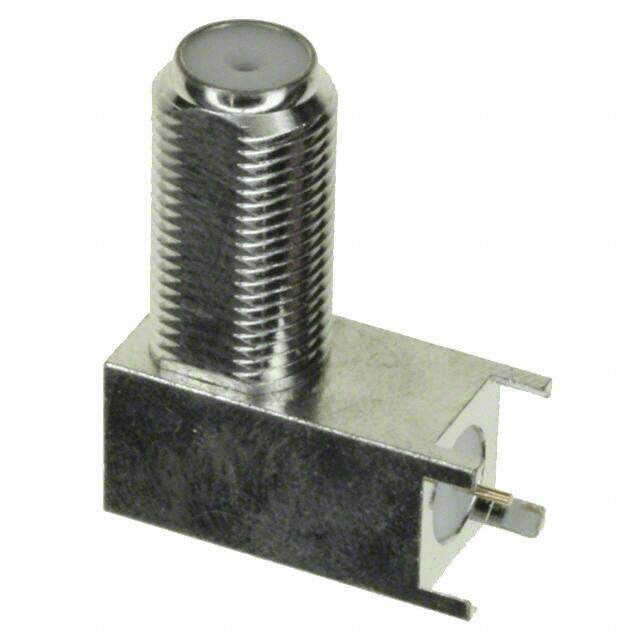

F Type Connector Receptacle, Female Socket 75 Ohm Panel Mount, Bulkhead; Through Hole, Right Angle Solder
PDF
/
Buying Options
Total Price: USD $8.64
Unit Price: USD $8.640305
≥1 USD $8.640305
≥10 USD $8.151234
≥100 USD $7.689844
≥500 USD $7.254566
≥1000 USD $6.843935
Inventory: 2889
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Length 9.5mm
Technical
Shield Termination Solder
Body Finish Tin
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 2GHz
Body Plating Tin
Number of Ports 1
Connector Style F Type
Impedance 75Ohm
Polarity Standard
Housing Color Silver
Frequency 2GHz
Depth 27.2mm
Orientation Right Angle
Fastening Type Threaded
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Receptacle, Female Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2009
Packaging Bulk
Physical
Center Contact Material Beryllium Copper
Center Contact Plating Gold
Body Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount, Through Hole, Right Angle
Mount Bulkhead, Panel, Through Hole
Contact Plating Gold
Contact Material Copper
Supply Chain
Factory Lead Time 8 Weeks
