222167-10
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
F Type Connector Jack, Female Socket 75 Ohm Panel Mount, Bulkhead - Front Side Nut Solder
PDF
/
Buying Options
Total Price: USD $5.55
Unit Price: USD $5.5528
≥1 USD $5.5528
≥10 USD $5.038
≥100 USD $4.771712
≥500 USD $4.660832
≥1000 USD $4.438896
≥3000 USD $3.884056
Inventory: 190
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Brass
Contact Plating Tin
Mount Bulkhead, Front Side Nut, Panel
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Insulation Material Polypropylene
Dielectric Material Polypropylene (PP)
Weight 1.000001g
Body Material Brass
Center Contact Plating Tin
Center Contact Material Brass
Technical
Operating Temperature -40°C~140°C
Packaging Bulk
Published 2008
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Jack, Female Socket
Max Operating Temperature 140°C
Min Operating Temperature -40°C
Gender Male
Voltage - Rated 500V
Fastening Type Threaded
Depth 10.3mm
Frequency 3GHz
Housing Color Silver
Impedance 75Ohm
Connector Style F Type
Number of Ports 1
Body Plating Tin
Frequency (Max) 3GHz
Mating Cycles 100
Contact Termination Solder

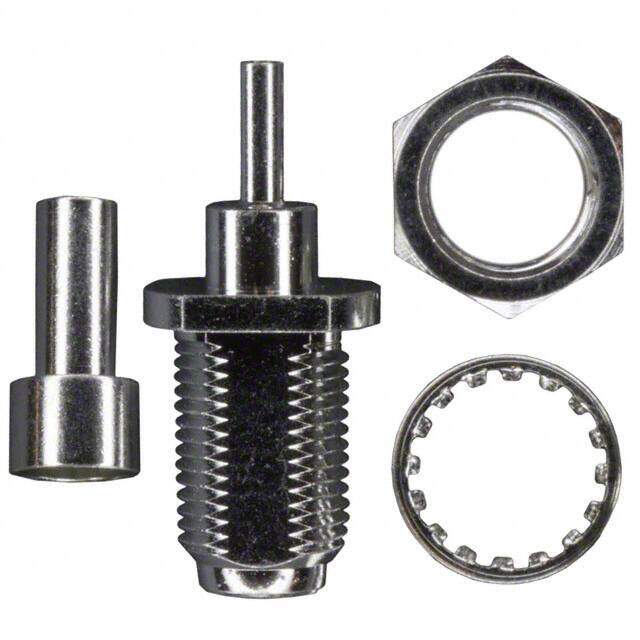

Includes 4 pcs - 1 Connector, 1 Ferrule, 1 Lockwasher, 1 Nut
Body Finish Tin
Cable Group RG-179 Double Braid
Shield Termination Crimp
Dimensions
Length 31.5mm
Compliance
RoHS Status RoHS Compliant
