222164

Amphenol RF
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Coaxial Connectors (RF)

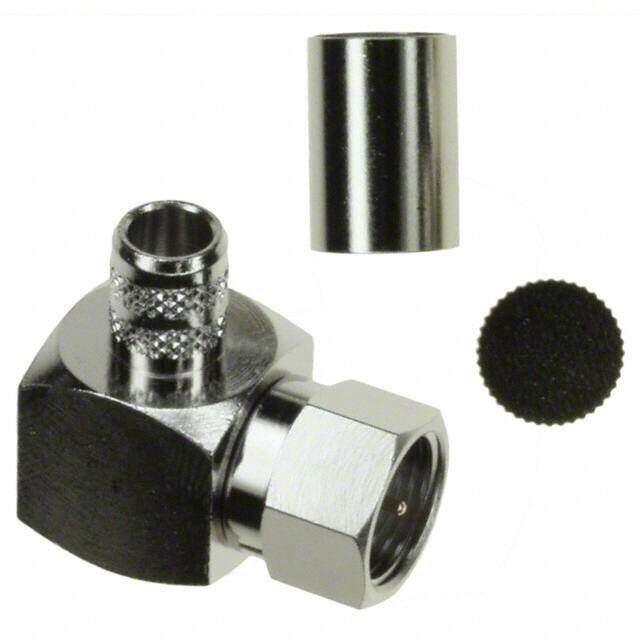

Description F Type Connector Plug, Male Pin 75 Ohm Free Hanging (In-Line), Right Angle Solder
PDF
/
Buying Options
Total Price: USD $2.89
Unit Price: USD $2.8864
≥1 USD $2.8864
≥10 USD $2.62416
≥100 USD $2.48512
≥500 USD $2.427392
≥1000 USD $2.31176
≥3000 USD $2.035
Inventory: 86
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 9 Weeks

Physical

Contact Material Brass
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line), Right Angle
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 19.499993g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Brass

Technical

Operating Temperature -40°C~140°C
Packaging Bulk
Published 2009
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Plug, Male Pin
Max Operating Temperature 140°C
Min Operating Temperature -65°C
Voltage - Rated 500V
Fastening Type Threaded
Orientation Right Angle
Depth 12.7mm
Frequency 2GHz
Housing Color Silver
Impedance 75Ohm
Connector Style F Type
Number of Ports 1
Body Plating Nickel
Frequency (Max) 3GHz
Mating Cycles 100
Contact Termination Solder
Includes 3 pcs - 1 Connector, 1 End Cap, 1 Ferrule
Body Finish Nickel
Cable Group RG-6, 6A, 54, 143, 212, Belden 1152A, 89248, 9290
Shield Termination Crimp

Dimensions

Length 24mm

Compliance

Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
