222153
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

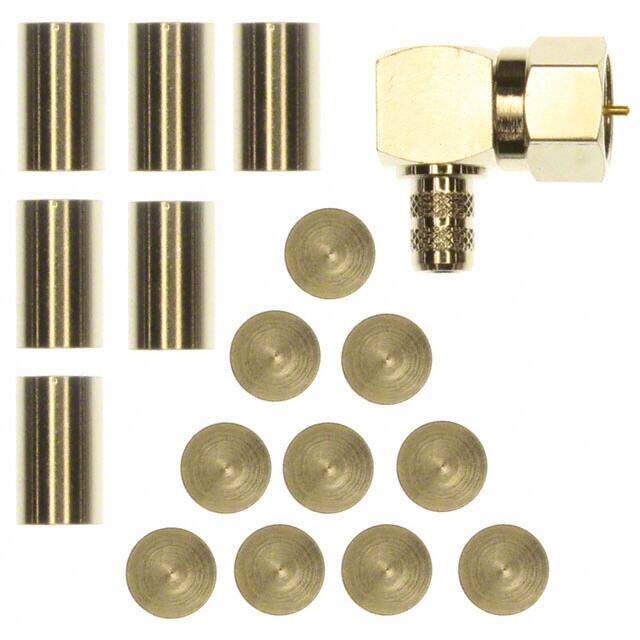

F Type Connector Plug, Male Pin 75 Ohm Free Hanging (In-Line), Right Angle Solder
PDF
/
Buying Options
Total Price: USD $5.04
Unit Price: USD $5.0424
≥1 USD $5.0424
≥10 USD $4.57952
≥100 USD $4.337696
≥500 USD $4.236848
≥1000 USD $4.035152
≥3000 USD $3.530762
Inventory: 116
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line), Right Angle
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 13.629997g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Brass
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2009
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Plug, Male Pin
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 500V
Fastening Type Threaded
Orientation Right Angle
Frequency 1GHz
Housing Color Silver
Impedance 75Ohm
Connector Style F Type
Number of Ports 1
Body Plating Nickel
Frequency (Max) 2GHz
Mating Cycles 500
Contact Termination Solder
Includes 3 pcs - 1 Connector, 1 End Cap, 1 Ferrule
Body Finish Nickel
Cable Group RG-59, 59B, 62, 140, 210, Belden 8241, 8263, 8279, 9209
Shield Termination Crimp
Dimensions
Length 19.3mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
