222144
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

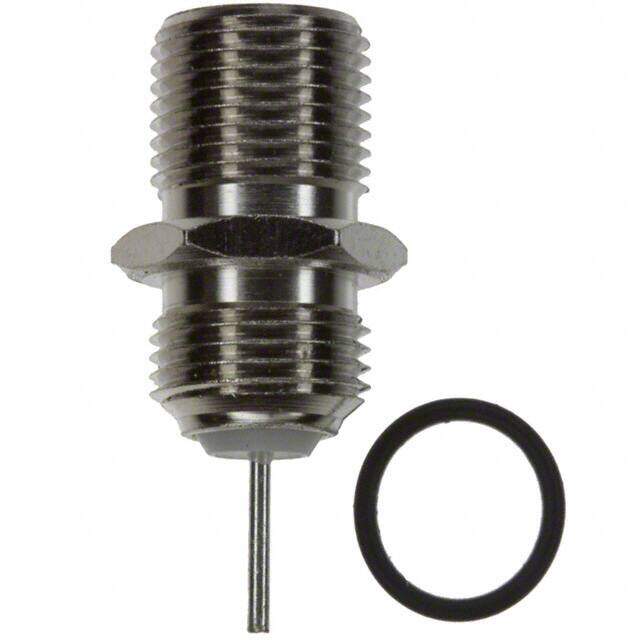

F Type Connector Receptacle, Female Socket 75 Ohm Panel Mount, Bulkhead - Rear Side Nut Solder
PDF
/
Buying Options
Total Price: USD $1.73
Unit Price: USD $1.7336
≥1 USD $1.7336
≥10 USD $1.50744
≥100 USD $1.442848
≥500 USD $1.410816
≥1000 USD $1.346752
≥3000 USD $1.218483
Inventory: 381
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Brass
Contact Plating Tin
Mount Bulkhead, Cable, Flanges, Panel, Rear Side Nut
Mounting Type Panel Mount
Mounting Feature Bulkhead - Rear Side Nut
Insulation Material Polyphenylene
Dielectric Material Polyoxymethylene (POM) Acetal, Polypropylene (PP)
Body Material Brass
Center Contact Plating Tin
Center Contact Material Brass
Technical
Packaging Bulk
Published 2007
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Socket
Max Operating Temperature 155°C
Min Operating Temperature -40°C
Voltage - Rated 500V
Fastening Type Threaded
Orientation Straight
Depth 11mm
Frequency 1GHz
Housing Color Silver
Polarity Standard
Plating Nickel
Impedance 75Ohm
Connector Style F Type
Number of Ports 1
Body Plating Nickel
Frequency (Max) 2GHz
Mating Cycles 500
Contact Termination Solder
Includes 2 pcs - 1 Connector, 1 Gasket
Body Finish Nickel
Shield Termination Solder
Dimensions
Length 25.7mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
