222113
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

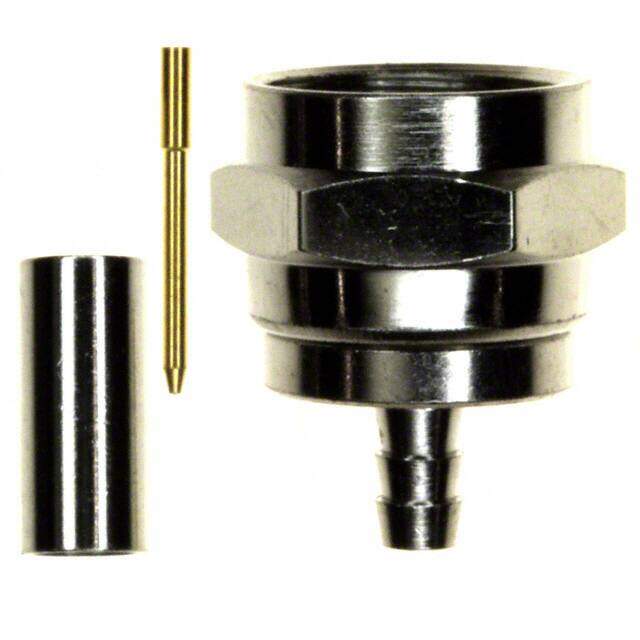

F Type Connector Plug, Male Pin 75 Ohm Free Hanging (In-Line) Solder
PDF
/
Buying Options
Total Price: USD $2.29
Unit Price: USD $2.288
≥1 USD $2.288
≥10 USD $1.99496
≥100 USD $1.909952
≥500 USD $1.867536
≥1000 USD $1.782616
≥3000 USD $1.612794
Inventory: 209
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Brass
Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 5.386665g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Brass
Technical
Packaging Bulk
Published 2008
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Plug, Male Pin
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 500V
Fastening Type Threaded
Orientation Straight
Depth 11mm
Frequency 1GHz
Housing Color Silver
Impedance 75Ohm
Connector Style F Type
Number of Ports 1
Body Plating Nickel
Frequency (Max) 1GHz
Mating Cycles 500
Contact Termination Solder
Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Body Finish Nickel
Cable Group RG-179, 179A, 179B, 187, 187A, Belden 9221, M17/94-RG179
Shield Termination Crimp
Dimensions
Length 14.4mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
