182311
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

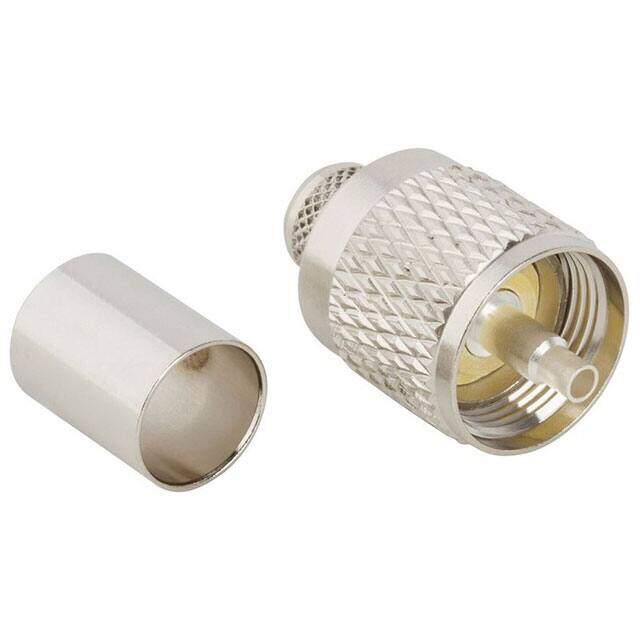

RF Connectors / Coaxial Connectors UHF STRAIGHT CRIMP PLUG RG-214
PDF
/
Buying Options
Total Price: USD $11.65
Unit Price: USD $11.6512
≥1 USD $11.6512
≥10 USD $10.32592
≥100 USD $9.928512
≥500 USD $9.531456
≥1000 USD $9.00196
≥3000 USD $8.207698
Inventory: 169
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Brass
Contact Plating Silver
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Dielectric Material Phenol Formaldehyde (Phenolic)
Weight 12.000013g
Body Material Brass
Center Contact Plating Silver
Center Contact Material Brass
Technical
Packaging Bulk
Published 2010
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Plug, Male Pin
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 500V
Fastening Type Threaded
Orientation Straight
Frequency 500MHz
Housing Color Silver
Impedance Non-Constant
Connector Style UHF
Number of Ports 1
Body Plating Nickel
Frequency (Max) 300MHz
Mating Cycles 500
Contact Termination Crimp
Includes 2 pcs - 1 Connector, 1 Ferrule
Body Finish Nickel
Cable Group RG-8, 8A, 9, 87A, 213, 214, 225, 393
Shield Termination Crimp
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
