172264
RoHS
RoHS compliant
RoHS compliantPackage 600
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
RF Connectors / Coaxial Connectors N STRAIGHT JACK BULKHEAD CABLE CRIMP
PDF
/
Buying Options
Total Price: USD $15.03
Unit Price: USD $15.030526
≥1 USD $15.030526
≥10 USD $14.179735
≥100 USD $13.377113
≥500 USD $12.619921
≥1000 USD $11.905578
Inventory: 995
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Bronze, Copper
Contact Plating Nickel
Mount Bulkhead, Front Side Nut, Panel
Mounting Type Panel Mount
Package / Case 600
Mounting Feature Bulkhead - Front Side Nut
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 44.499991g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Phosphor Bronze
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2005
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Jack, Female Socket
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 1500V
Fastening Type Threaded
Orientation Straight
Ingress Protection Weatherproof
Frequency 11GHz
Housing Color Silver
Impedance 50Ohm
Connector Style N Type
Number of Ports 1
Body Plating Bronze
Frequency (Max) 11GHz
Mating Cycles 500
Contact Termination Solder

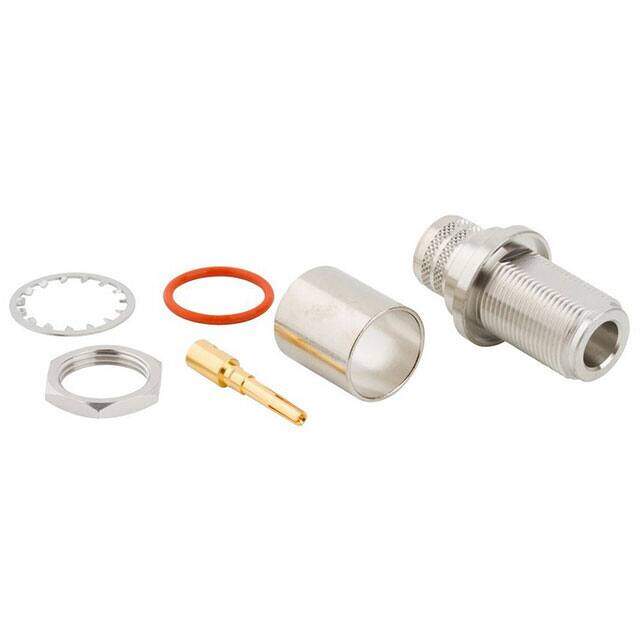

Includes 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut
Insertion Loss 0.15dB
Body Finish White Bronze
Cable Group LMR-600
Shield Termination Crimp
Dimensions
Length 40.8mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
