172238
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

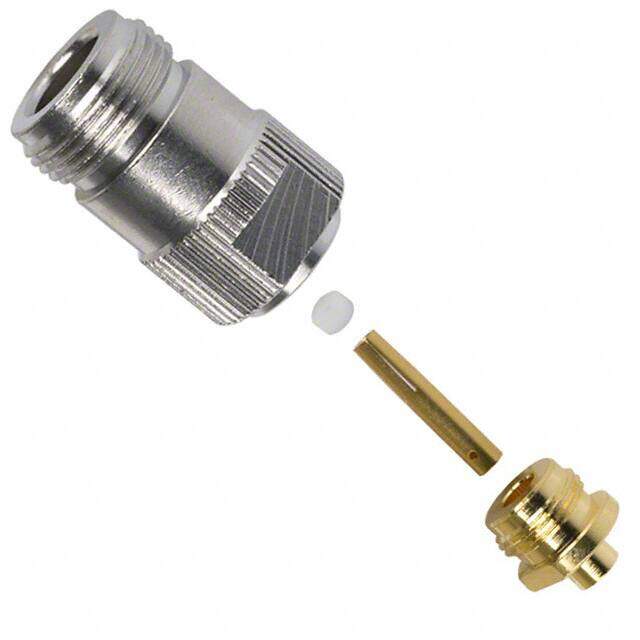

N Type Connector Jack, Female Socket 50 Ohm Free Hanging (In-Line) Crimp
PDF
/
Buying Options
Total Price: USD $17.53
Unit Price: USD $17.5296
≥1 USD $17.5296
≥10 USD $15.19408
≥100 USD $14.401376
≥500 USD $14.19264
≥1000 USD $12.52284
≥3000 USD $11.687984
Inventory: 232
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Bronze, Copper
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material Teflon
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Brass
Center Contact Plating Gold
Center Contact Material Phosphor Bronze
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2001
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Jack, Female Socket
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 1500V
Fastening Type Threaded
Orientation Straight
Frequency 11GHz
Housing Color Silver
Insulation Resistance 5GOhm
Impedance 50Ohm
Connector Style N Type
Number of Ports 1
Body Plating Bronze
Frequency (Max) 11GHz
Mating Cycles 500
Contact Termination Crimp
Includes 4 pcs - 1 Connector, 1 Contact, 1 Insulator, 1 Nut
Insertion Loss 0.15dB
Body Finish White Bronze
Cable Group RG-402 (.141 Semi Rigid)
Shield Termination Solder
Dimensions
Length 26.7208mm
Diameter - Inside 3.63 mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
