172237
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

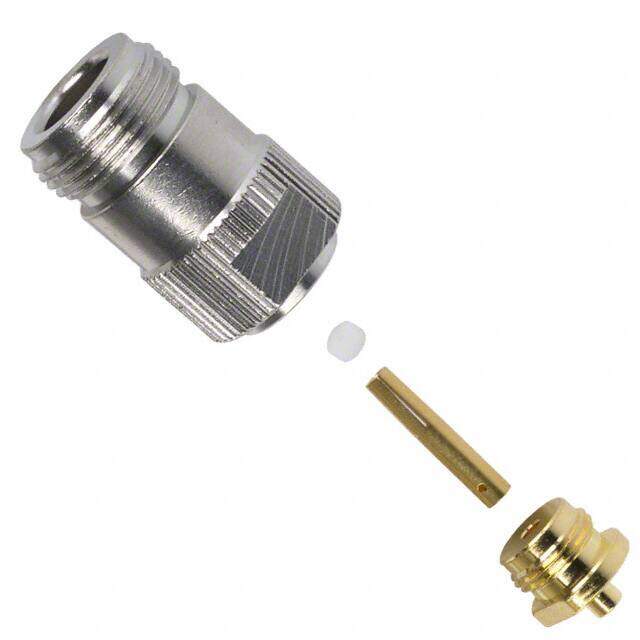

N Type Connector Jack, Female Socket 50 Ohm Free Hanging (In-Line) Solder
PDF
/
Buying Options
Total Price: USD $8.87
Unit Price: USD $8.8704
≥1 USD $8.8704
≥10 USD $7.98512
≥100 USD $7.521888
≥500 USD $7.328992
≥1000 USD $7.136184
≥3000 USD $6.364688
Inventory: 73
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Bronze, Copper
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 34.660014g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Phosphor Bronze
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2001
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Jack, Female Socket
Voltage - Rated 1500V
Fastening Type Threaded
MIL Conformance YES
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Option GENERAL PURPOSE
Orientation Straight
Frequency 11GHz
Housing Color Silver
Insulation Resistance 5GOhm
Impedance 50Ohm
Connector Style N Type
Number of Ports 1
Body Plating Bronze
Mating Cycles 500
Contact Termination Solder
Includes 4 pcs - 1 Connector, 1 Contact, 1 Insulator, 1 Nut
Insertion Loss 0.15dB
Body Finish White Bronze
Cable Group RG-405 (.085, .086 Semi Rigid)
VSWR 1.3
Dimensions
Length 26.7mm
Diameter - Inside 2.24 mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
