172220
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

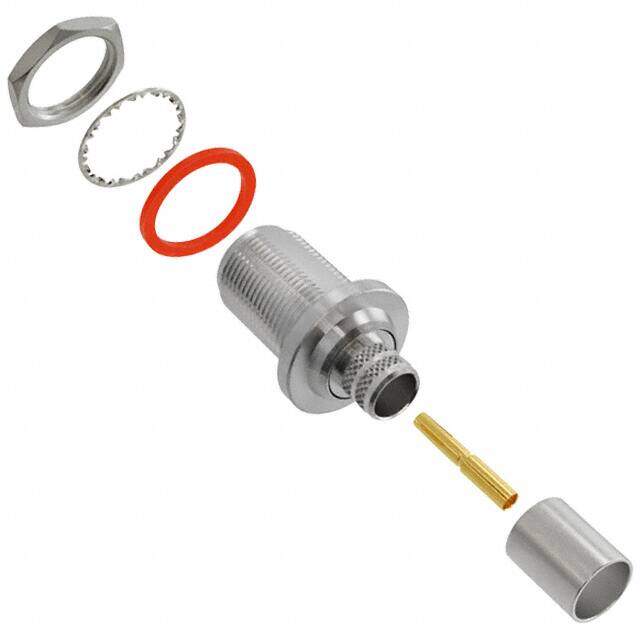

RF Connectors / Coaxial Connectors N ST JACK BULKHEAD CABLE CRIMP
PDF
/
Buying Options
Total Price: USD $11.78
Unit Price: USD $11.7832
≥1 USD $11.7832
≥10 USD $10.4412
≥100 USD $10.039392
≥500 USD $9.63776
≥1000 USD $9.10228
≥3000 USD $8.29913
Inventory: 141
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Bronze, Copper
Contact Plating Nickel
Mount Bulkhead, Front Side Nut, Panel
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 38.340008g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Phosphor Bronze
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2008
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Jack, Female Socket
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 1500V
Fastening Type Threaded
Orientation Straight
Ingress Protection Weatherproof
Frequency 11GHz
Housing Color Silver
Insulation Resistance 5GOhm
Impedance 50Ohm
Connector Style N Type
Number of Ports 1
Body Plating Nickel
Frequency (Max) 11GHz
Mating Cycles 500
Contact Termination Crimp
Includes 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut
Insertion Loss 0.15dB
Body Finish Nickel
Cable Group Belden 9913, 9914, LMR-400
Shield Termination Crimp
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
