172215
RoHS
RoHS compliant
RoHS compliantPackage 200
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

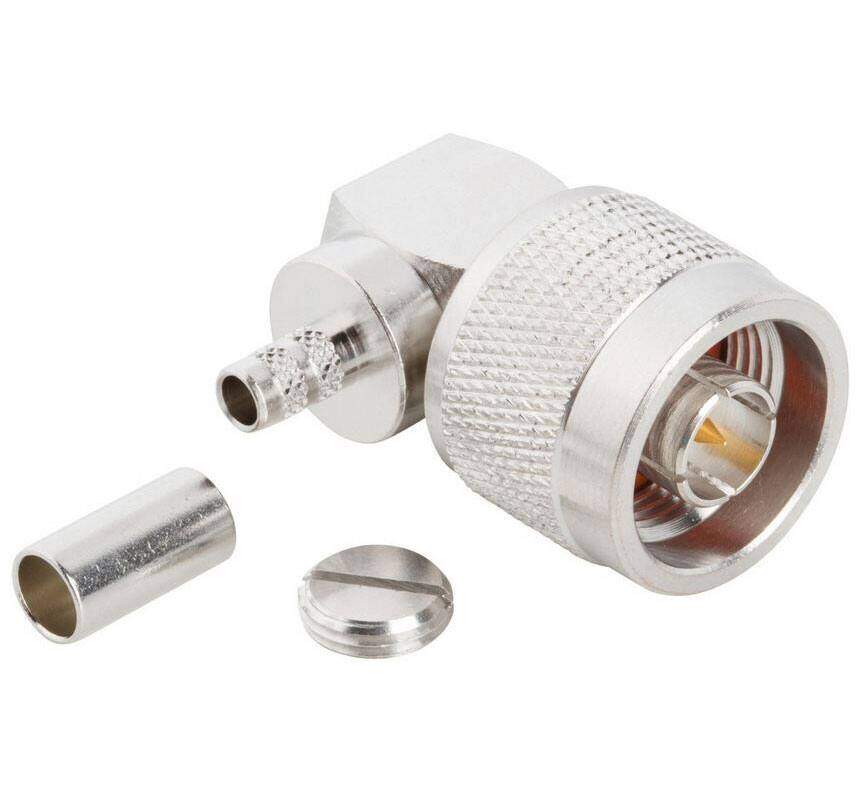

RF Connectors / Coaxial Connectors N RIGHT ANGLE PLUG LMR 200
PDF
/
Buying Options
Total Price: USD $17.73
Unit Price: USD $17.732199
≥1 USD $17.732199
≥10 USD $16.728489
≥100 USD $15.781595
≥500 USD $14.888289
≥1000 USD $14.045561
Inventory: 6251
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mount Free Hanging
Mounting Type Free Hanging (In-Line), Right Angle
Package / Case 200
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 44.680011g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Brass
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2005
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pin
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 1500V
Fastening Type Threaded
Orientation Right Angle
Frequency 11GHz
Housing Color Silver
Impedance 50Ohm
Connector Style N Type
Number of Ports 1
Body Plating Nickel
Frequency (Max) 11GHz
Mating Cycles 500
Contact Termination Solder
Includes 3 pcs - 1 Connector, 1 End Cap, 1 Ferrule
Insertion Loss 0.15dB
Body Finish Nickel
Cable Group Belden 7807A, LMR-200
Shield Termination Crimp
Compliance
RoHS Status RoHS Compliant
