172214

Amphenol RF
RoHS
RoHS RoHS compliant
Package 200
Category Connectors, Interconnects / Coaxial Connectors (RF)

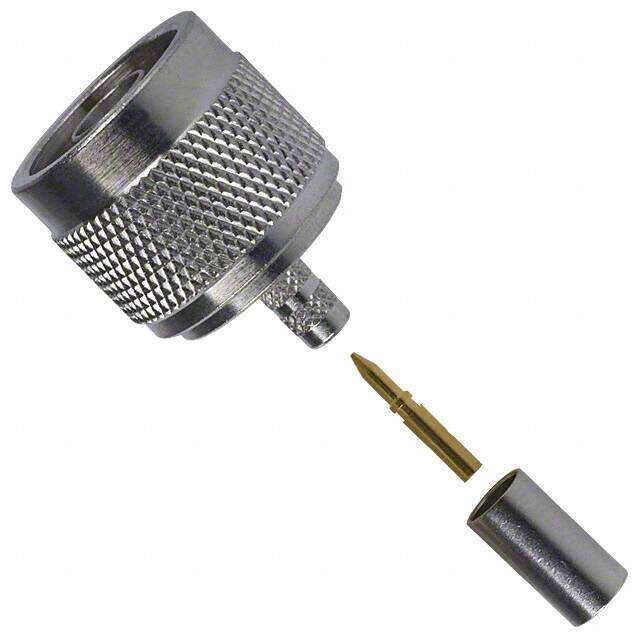

Description N Type Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line) Crimp
PDF
/
Buying Options
Total Price: USD $16.49
Unit Price: USD $16.4912
≥1 USD $16.4912
≥10 USD $14.29472
≥100 USD $13.548128
≥500 USD $13.351888
≥1000 USD $11.781088
≥3000 USD $10.995714
Inventory: 209
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Contact Material Brass
Contact Plating Nickel
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Package / Case 200
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 31.66001g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Brass

Technical

Operating Temperature -65°C~165°C
Packaging Bulk
Published 2004
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Plug, Male Pin
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Gender Male
Voltage - Rated 1500V
Fastening Type Threaded
Orientation Straight
Frequency 11GHz
Housing Color Silver
Insulation Resistance 5GOhm
Impedance 50Ohm
Connector Style N Type
Number of Ports 1
Body Plating Bronze
Frequency (Max) 11GHz
Mating Cycles 500
Contact Termination Crimp
Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Insertion Loss 0.15dB
Body Finish White Bronze
Cable Group Belden 7807A, LMR-200
Shield Termination Crimp

Dimensions

Length 26.5mm
Diameter - Inside 3.3 mm

Compliance

REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
