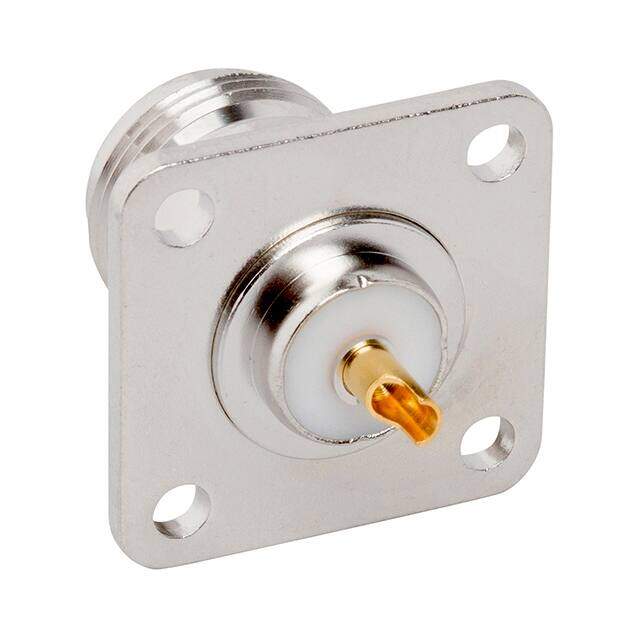

172210
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
Conn Type N RCP 0 to 11GHz 50Ohm Solder Cup ST Panel Mount Gold
PDF
/
Buying Options
Total Price: USD $12.14
Unit Price: USD $12.1352
≥1 USD $12.1352
≥10 USD $10.758
≥100 USD $10.344576
≥500 USD $9.930624
≥1000 USD $9.378952
≥3000 USD $8.551426
Inventory: 294
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Bronze, Copper
Contact Plating Gold
Mount Bulkhead, Flanges, Panel
Mounting Type Panel Mount
Mounting Feature Flange
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 29.259996g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Phosphor Bronze
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2004
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Socket
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 1500V
Fastening Type Threaded
Orientation Straight
Depth 25.4mm
Frequency 11Hz
Housing Color Silver
Impedance 50Ohm
Connector Style N Type
Number of Ports 1
Body Plating Bronze
Frequency (Max) 11GHz
Mating Cycles 500
Contact Termination Solder Cup
Insertion Loss 0.15dB
Body Finish White Bronze
Shield Termination Solder
Dimensions
Length 28.7mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
