172185
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
Conn Type N RCP 0Hz to 11GHz 50Ohm Solder Cup ST Panel Mount Gold
PDF
/
Buying Options
Total Price: USD $14.02
Unit Price: USD $14.0184
≥1 USD $14.0184
≥10 USD $12.42824
≥100 USD $11.9504
≥500 USD $11.472384
≥1000 USD $10.835088
≥3000 USD $9.87903
Inventory: 1030
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Brass, Bronze
Contact Plating Gold
Mount Bulkhead, Front, Panel, Rear Side Nut
Mounting Type Panel Mount
Mounting Feature Bulkhead - Rear Side Nut
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Brass
Center Contact Plating Gold
Center Contact Material Phosphor Bronze
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2001
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Socket
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 1500V
Fastening Type Threaded
Orientation Straight
Ingress Protection Weatherproof
Depth 16.1mm
Frequency 11GHz
Housing Color Silver
Impedance 50Ohm
Connector Style N Type
Number of Ports 1
Body Plating Nickel
Frequency (Max) 11GHz
Mating Cycles 500
Contact Termination Solder Cup

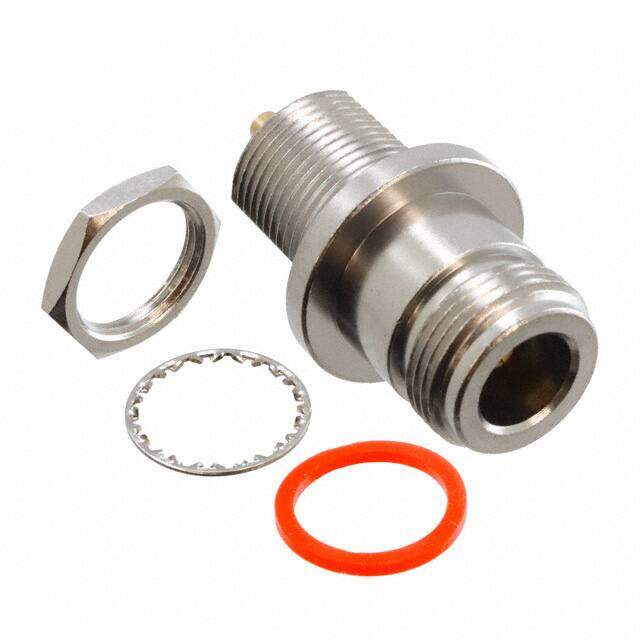

Includes 4 pcs - 1 Connector, 1 Gasket, 1 Lockwasher, 1 Nut
Insertion Loss 0.15dB
Body Finish Nickel
Shield Termination Solder
Dimensions
Length 40.1mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
