RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description N Type Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line), Right Angle Solder
PDF
/
Buying Options
Total Price: USD $17.77
Unit Price: USD $17.7672
≥1 USD $17.7672
≥10 USD $15.39824
≥100 USD $14.594272
≥500 USD $14.382896
≥1000 USD $12.690744
≥3000 USD $11.844686
Inventory: 260
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 8 Weeks

Physical

Contact Plating Nickel, Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line), Right Angle
Insulation Material Teflon
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 47.999995g
Body Material Brass
Center Contact Plating Gold

Technical

Operating Temperature -65°C~165°C
Packaging Bulk
Published 2001
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Plug, Male Pin
Voltage - Rated 1500V
Additional Feature APPLICABLE CABLE: RG 58/U; RG 58C/U
Fastening Type Threaded
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Option GENERAL PURPOSE
Orientation Right Angle
Frequency 11Hz
Housing Color Silver
Insulation Resistance 5GOhm
Impedance 50Ohm
Connector Style N Type
Number of Ports 1
Body Plating Bronze
Frequency (Max) 11GHz
Mating Cycles 500
Contact Termination Solder

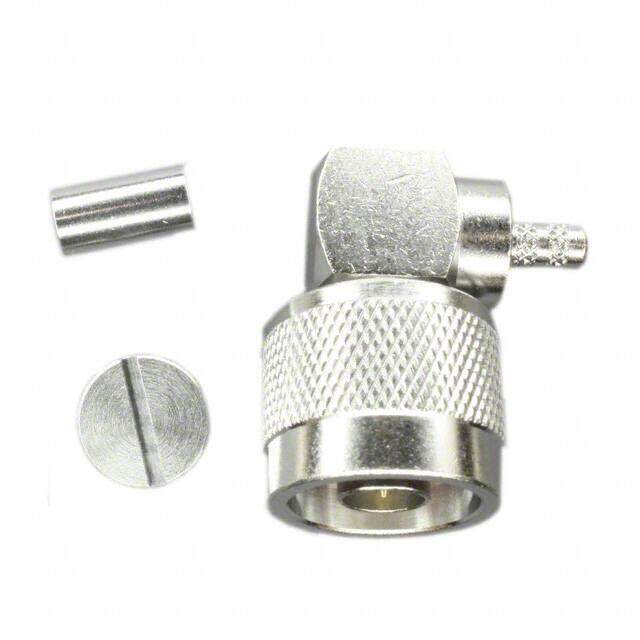

Includes 3 pcs - 1 Connector, 1 End Cap, 1 Ferrule
Insertion Loss 0.15dB
Body Finish White Bronze
Cable Group RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
VSWR 1.3
Shield Termination Crimp

Dimensions

Length 25.3746mm
Diameter - Inside 3.1 mm

Compliance

REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
