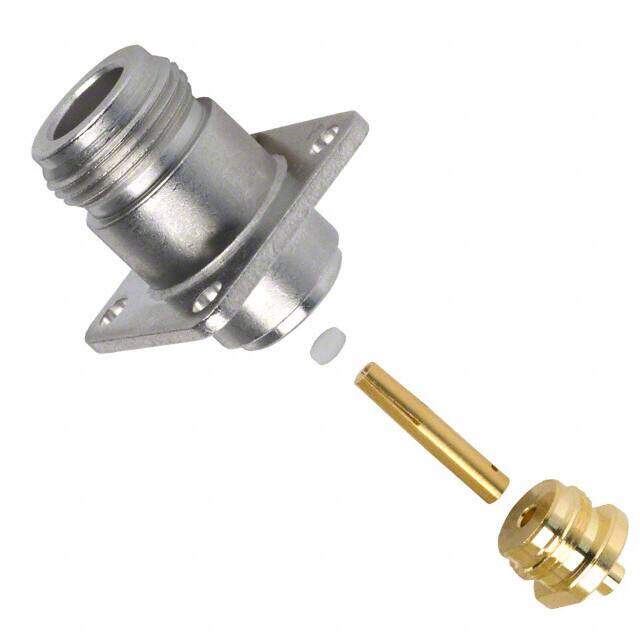

172170

Amphenol RF
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description connector, rf coaxial, n str solder panel jack, for 0.141 semi-rigid cable, 50 ohm
PDF
/
Buying Options
Total Price: USD $10.18
Unit Price: USD $10.1816
≥1 USD $10.1816
≥10 USD $9.16432
≥100 USD $8.6328
≥500 USD $8.411568
≥1000 USD $8.19016
≥3000 USD $7.30473
Inventory: 1094
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 9 Weeks

Physical

Contact Material Bronze, Copper
Contact Plating Gold
Mount Bulkhead, Flanges, Panel
Mounting Type Panel Mount
Mounting Feature Flange
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 38.000013g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Phosphor Bronze

Technical

Operating Temperature -65°C~165°C
Packaging Bulk
Published 2004
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Jack, Female Socket
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 1500V
Fastening Type Threaded
Orientation Straight
Depth 25.4mm
Frequency 11GHz
Housing Color Silver
Insulation Resistance 5GOhm
Impedance 50Ohm
Connector Style N Type
Number of Ports 1
Body Plating Bronze
Frequency (Max) 6GHz
Mating Cycles 500
Contact Termination Solder
Includes 4 pcs - 1 Connector, 1 Contact, 1 Insulator, 1 Nut
Insertion Loss 0.15dB
Body Finish White Bronze
Cable Group RG-402 (.141 Semi Rigid)
Shield Termination Solder

Dimensions

Length 26.7mm
Diameter - Inside 3.63 mm

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
