172153

Amphenol RF
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Coaxial Connectors (RF)

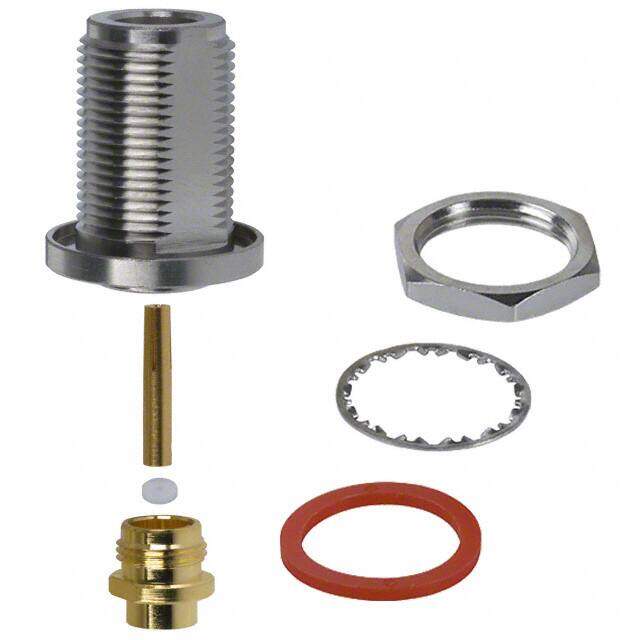

Description N Type Connector Jack, Female Socket 50 Ohm Panel Mount, Bulkhead - Front Side Nut Solder
PDF
/
Buying Options
Total Price: USD $12.48
Unit Price: USD $12.4784
≥1 USD $12.4784
≥10 USD $11.05896
≥100 USD $10.63392
≥500 USD $10.208528
≥1000 USD $9.641456
≥3000 USD $8.790698
Inventory: 75
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Length 26.7mm

Technical

Shield Termination Solder
Cable Group RG-401 (.250 Semi Rigid)
Body Finish White Bronze
Insertion Loss 0.15dB
Includes 7 pcs - 1 Connector, 1 Contact, 1 Gasket, 1 Insulator, 1 Lockwasher, 2 Nuts
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 11GHz
Body Plating Bronze
Number of Ports 1
Connector Style N Type
Impedance 50Ohm
Housing Color Silver
Frequency 11GHz
Ingress Protection Weatherproof
Orientation Straight
Fastening Type Threaded
Voltage - Rated 1500V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Jack, Female Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2001
Packaging Bulk
Operating Temperature -65°C~165°C

Physical

Center Contact Material Beryllium Copper
Center Contact Plating Gold
Body Material Brass
Weight 35.699987g
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount
Mount Bulkhead, Front Side Nut, Panel
Contact Plating Gold
Contact Material Bronze, Copper

Supply Chain

Factory Lead Time 10 Weeks
