172149
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
CONN N JACK STR 50 OHM CRIMP
PDF
/
Buying Options
Total Price: USD $10.57
Unit Price: USD $10.5688
≥1 USD $10.5688
≥10 USD $9.3676
≥100 USD $9.007328
≥500 USD $8.647056
≥1000 USD $8.166664
≥3000 USD $7.446094
Inventory: 71
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Bronze, Copper
Contact Plating Nickel
Mount Bulkhead, Front Side Nut, Panel
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 38.899997g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Phosphor Bronze
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2004
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Jack, Female Socket
Voltage - Rated 1500V
Fastening Type Threaded
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Option GENERAL PURPOSE
Orientation Straight
Ingress Protection Weatherproof
Frequency 11GHz
Housing Color Silver
Insulation Resistance 5GOhm
Impedance 50Ohm
Connector Style N Type
Number of Ports 1
Body Plating Bronze
Mating Cycles 500
Contact Termination Crimp

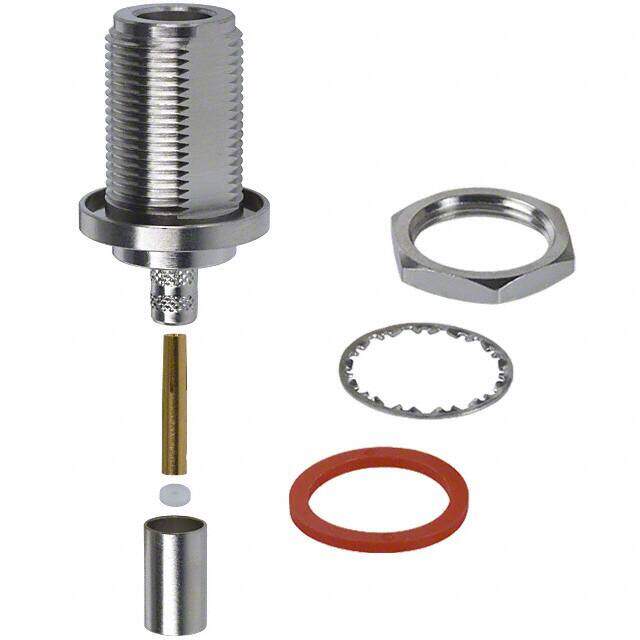

Includes 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut
Insertion Loss 0.15dB
Body Finish White Bronze
Cable Group RG-8X, Belden 9258, LMR-240
VSWR 1.3
Dimensions
Length 36mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
