172142
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
N Type Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line) Crimp
PDF
/
Buying Options
Total Price: USD $7.98
Unit Price: USD $7.9816
≥1 USD $7.9816
≥10 USD $7.18168
≥100 USD $6.765088
≥500 USD $6.591728
≥1000 USD $6.41828
≥3000 USD $5.724462
Inventory: 469
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Diameter - Inside 3.2 mm
Length 29.8mm
Technical
Shield Termination Crimp
Cable Group RG-55, 142, 223, 400
Body Finish White Bronze
Insertion Loss 0.15dB

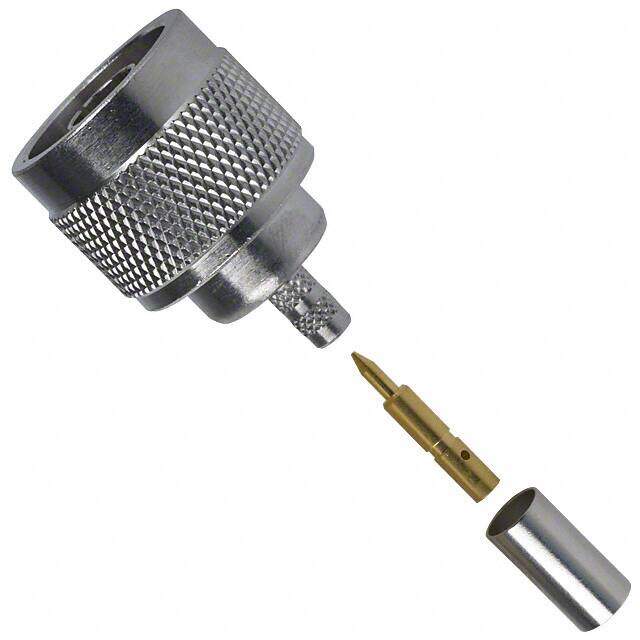

Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Contact Termination Crimp
Mating Cycles 500
Frequency (Max) 11GHz
Body Plating Nickel
Number of Ports 1
Connector Style N Type
Impedance 50Ohm
Insulation Resistance 5GOhm
Housing Color Silver
Frequency 11GHz
Orientation Straight
Fastening Type Threaded
Voltage - Rated 1500V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Plug, Male Pin
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2001
Packaging Bulk
Operating Temperature -65°C~165°C
Physical
Center Contact Material Brass
Center Contact Plating Gold
Body Material Brass
Weight 30.399987g
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Brass
Supply Chain
Factory Lead Time 9 Weeks
