172129-10

Amphenol RF
RoHS
RoHS RoHS compliant
Package 100
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description Coaxial Connector
PDF
/
Buying Options
Total Price: USD $17.34
Unit Price: USD $17.335465
≥1 USD $17.335465
≥10 USD $16.354209
≥100 USD $15.428499
≥500 USD $14.55519
≥1000 USD $13.731314
Inventory: 6620
Minimum: 1
-
+

Technical Details

Compliance

Ratings Dust Tight, IP68, Waterproof
RoHS Status RoHS Compliant

Technical

Shield Termination Crimp
Cable Group RG-316 Double Braid
Body Finish White Bronze
Insertion Loss 0.15dB

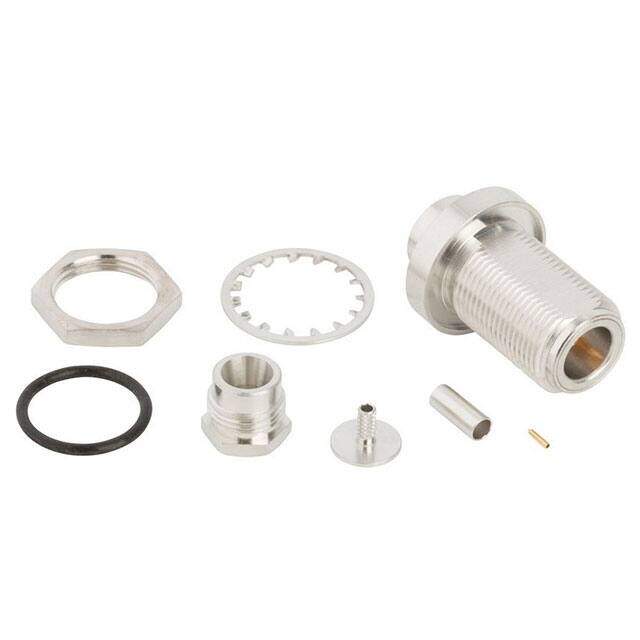

Includes 8 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Insulator, 1 Lockwasher, 2 Nuts, 1 Rear Body
Contact Termination Crimp or Solder
Mating Cycles 500
Frequency (Max) 2.5GHz
Body Plating Bronze
Number of Ports 1
Connector Style N Type
Impedance 50Ohm
Housing Color Silver
Frequency 2.5GHz
Ingress Protection IP68 - Dust Tight, Waterproof
Orientation Straight
Fastening Type Threaded
Voltage - Rated 1500V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Jack, Female Socket
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2010
Packaging Bulk
Operating Temperature -65°C~165°C

Physical

Center Contact Material Beryllium Copper, Brass
Center Contact Plating Gold
Body Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Mounting Feature Bulkhead - Front Side Nut
Package / Case 100
Mounting Type Panel Mount
Mount Bulkhead, Cable, Front Side Nut, Panel
Contact Plating Gold
Contact Material Brass, Copper

Supply Chain

Factory Lead Time 8 Weeks
