172114

Amphenol RF
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description CONN N JACK STR 50 OHM SOLDER
PDF
/
Buying Options
Total Price: USD $9.86
Unit Price: USD $9.860055
≥1 USD $9.860055
≥10 USD $9.301934
≥100 USD $8.775419
≥500 USD $8.27869
≥1000 USD $7.810091
Inventory: 4198
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Technical

Shield Termination Clamp
Cable Group RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
Body Finish White Bronze
Insertion Loss 0.15dB

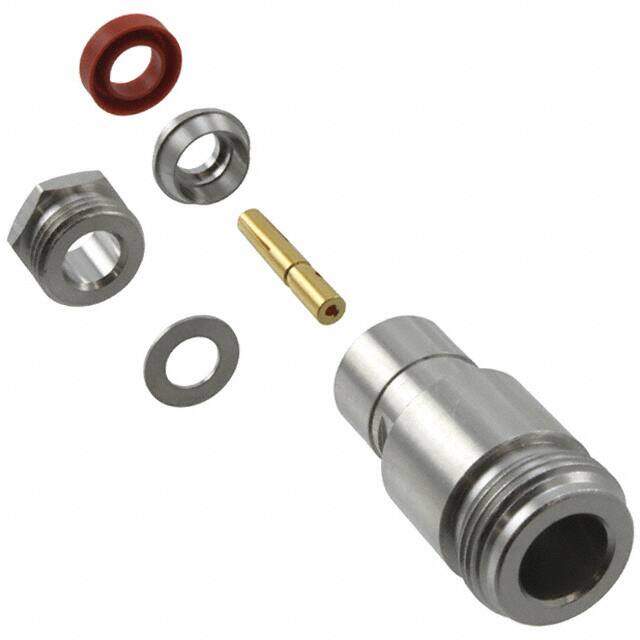

Includes 6 pcs - 1 Connector, 1 Braid Clamp, 1 Clamp, 1 Contact, 1 Gasket, 1 Washer
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 11GHz
Body Plating Bronze
Number of Ports 1
Connector Style N Type
Impedance 50Ohm
Housing Color Silver
Frequency 11GHz
Ingress Protection Weatherproof
Orientation Straight
Fastening Type Threaded
Voltage - Rated 1500V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Jack, Female Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2007
Packaging Bulk
Operating Temperature -65°C~165°C

Physical

Center Contact Material Phosphor Bronze
Center Contact Plating Gold
Body Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Bronze

Supply Chain

Factory Lead Time 9 Weeks
