15875
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

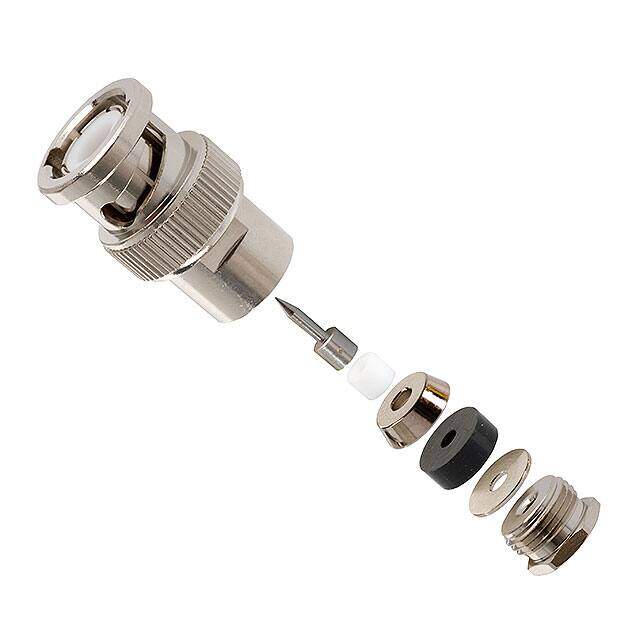

RF Connector BNC Straight Clamp Plug for RG-161 RG-178 50 Ohm
PDF
/
Buying Options
Total Price: USD $13.97
Unit Price: USD $13.9744
≥1 USD $13.9744
≥10 USD $12.38688
≥100 USD $11.910624
≥500 USD $11.434192
≥1000 USD $10.799008
≥3000 USD $9.846179
Inventory: 299
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Brass
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2001
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug, Male Pin
Gender Male
Voltage - Rated 500V
Fastening Type Bayonet Lock
Orientation Straight
Ingress Protection Weatherproof
Frequency 4GHz
Housing Color Silver
Polarity Standard
Insulation Resistance 5GOhm
Impedance 50Ohm
Connector Style BNC
Number of Ports 1
Mating Cycles 500
Contact Termination Solder
Includes 7 pcs - 1 Connector, 1 Bushing, 1 Contact, 1 Braid Clamp, 1 Clamp, 1 Gasket, 1 Washer
Insertion Loss 0.2dB
Body Finish Nickel
Cable Group RG-161, 178, 178A, 178B, 196, 196A
Shield Termination Clamp
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
