152140
RoHS
RoHS compliant
RoHS compliantPackage SMC
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
connector; rf coaxial; smc str blkhd recept jack; pcb term; 4 legs; center contact
PDF
/
Buying Options
Total Price: USD $9.92
Unit Price: USD $9.9176
≥1 USD $9.9176
≥10 USD $8.92848
≥100 USD $8.41104
≥500 USD $8.19544
≥1000 USD $7.979664
≥3000 USD $7.117026
Inventory: 613
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Technical
Shield Termination Solder
Body Finish Gold
Insertion Loss 0.3dB

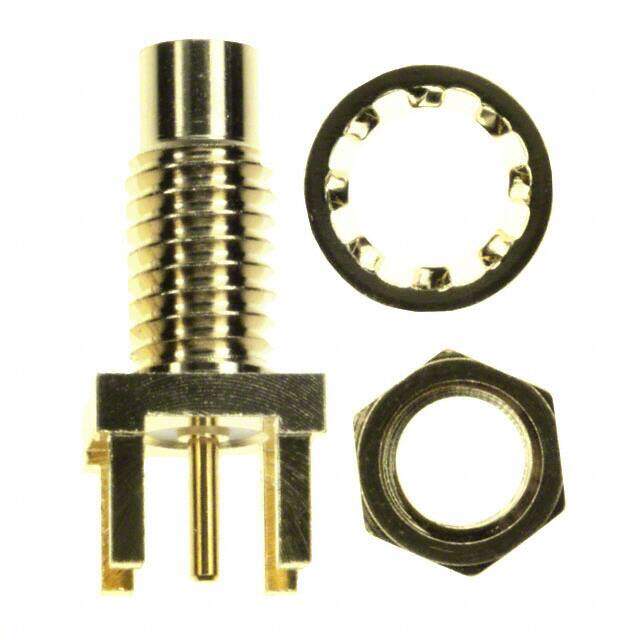

Includes 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 10GHz
Body Plating Gold
Number of Ports 1
Connector Style SMC
Impedance 50Ohm
Polarity Standard
Housing Color Gold
Frequency 10GHz
Orientation Straight
Fastening Type Threaded
Voltage - Rated 335V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Receptacle, Male Pin
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2003
Packaging Bulk
Operating Temperature -65°C~165°C
Physical
Center Contact Material Brass
Center Contact Plating Gold
Body Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Mounting Feature Bulkhead - Front Side Nut
Package / Case SMC
Mounting Type Panel Mount, Through Hole
Mount Bulkhead, Panel, Through Hole
Contact Plating Gold
Contact Material Brass
Supply Chain
Factory Lead Time 10 Weeks
