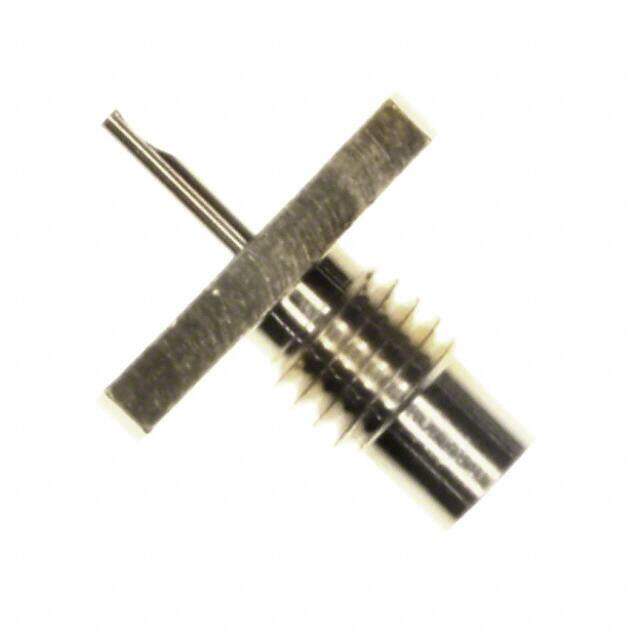

152131
RoHS
RoHS compliant
RoHS compliantPackage SMC
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
RF Connectors / Coaxial Connectors Panel Mount Jack Receptac
PDF
/
Buying Options
Total Price: USD $17.89
Unit Price: USD $17.893028
≥1 USD $17.893028
≥10 USD $16.880223
≥100 USD $15.924735
≥500 USD $15.023335
≥1000 USD $14.172955
Inventory: 8206
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Shield Termination Solder
Body Finish Gold
Insertion Loss 0.3dB
Contact Termination Solder Cup
Mating Cycles 500
Frequency (Max) 10GHz
Body Plating Gold
Connector Style SMC
Impedance 50Ohm
Housing Color Gold
Orientation Straight
Fastening Type Threaded
Voltage - Rated 335V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Receptacle, Male Pin
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2003
Packaging Bulk
Operating Temperature -65°C~165°C
Physical
Center Contact Material Brass
Center Contact Plating Gold
Body Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Mounting Feature Flange
Package / Case SMC
Mounting Type Panel Mount
Mount Flanges, Panel
Contact Plating Gold
Contact Material Brass
Supply Chain
Factory Lead Time 10 Weeks
