152127
RoHS
RoHS compliant
RoHS compliantPackage SMC
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

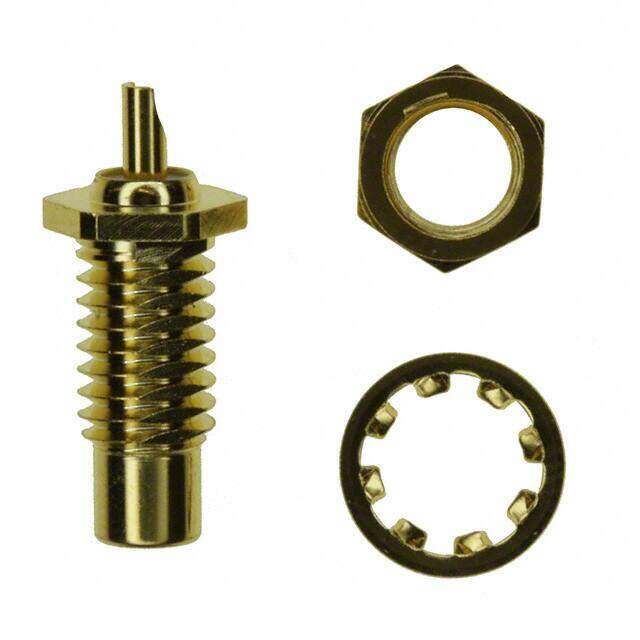

SMC Connector Receptacle, Male Pin 50 Ohm Panel Mount, Bulkhead - Front Side Nut Solder Cup
PDF
/
Buying Options
Total Price: USD $5.34
Unit Price: USD $5.3416
≥1 USD $5.3416
≥10 USD $4.85144
≥100 USD $4.595008
≥500 USD $4.488176
≥1000 USD $4.274424
≥3000 USD $3.74015
Inventory: 314
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mount Bulkhead, Front Side Nut, Panel
Mounting Type Panel Mount
Package / Case SMC
Mounting Feature Bulkhead - Front Side Nut
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 3.299998g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Brass
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2007
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Male Pin
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 335V
Fastening Type Threaded
Orientation Straight
Frequency 10GHz
Housing Color Gold
Impedance 50Ohm
Connector Style SMC
Number of Ports 1
Body Plating Gold
Frequency (Max) 10GHz
Mating Cycles 500
Contact Termination Solder Cup
Includes 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Insertion Loss 0.3dB
Body Finish Gold
Shield Termination Solder
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
