152107

Amphenol RF
RoHS
RoHS RoHS compliant
Package SMC
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description SMC Connector Plug, Female Socket 50 Ohm Free Hanging (In-Line), Right Angle Solder
PDF
/
Buying Options
Total Price: USD $8.72
Unit Price: USD $8.7208
≥1 USD $8.7208
≥10 USD $7.8452
≥100 USD $7.390592
≥500 USD $7.20104
≥1000 USD $7.011488
≥3000 USD $6.253518
Inventory: 162
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 8 Weeks

Physical

Contact Material Brass, Copper
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line), Right Angle
Package / Case SMC
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 3.580006g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Beryllium Copper

Technical

Operating Temperature -65°C~165°C
Packaging Bulk
Published 2007
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Plug, Female Socket
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 335V
Fastening Type Threaded
Orientation Right Angle
Frequency 10GHz
Housing Color Gold
Impedance 50Ohm
Connector Style SMC
Number of Ports 1
Body Plating Gold
Frequency (Max) 10GHz
Mating Cycles 500
Contact Termination Solder

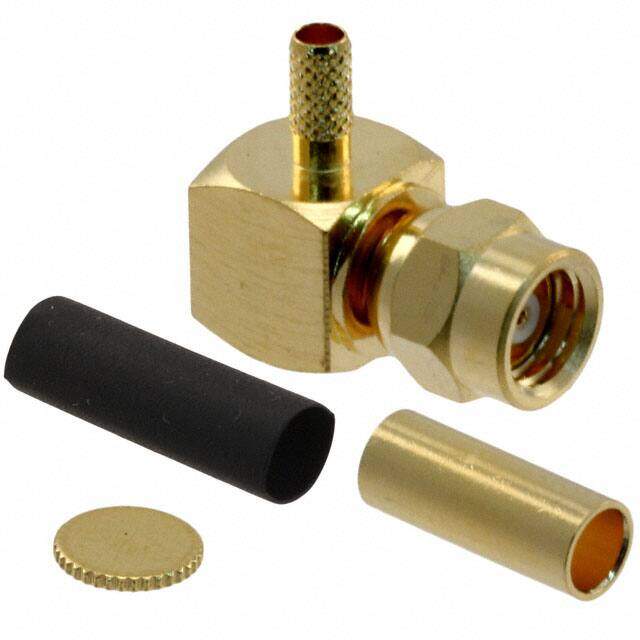

Includes 4 pcs - 1 Connector, 1 End Cap, 1 Ferrule, 1 Heat Shrink
Insertion Loss 0.6dB
Body Finish Gold
Cable Group RG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Shield Termination Crimp

Dimensions

Length 14.7mm

Compliance

Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
