152105
RoHS
RoHS compliant
RoHS compliantPackage SMC
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
SMC Connector Jack, Male Pin 50 Ohm Panel Mount, Bulkhead - Front Side Nut Crimp
PDF
/
Buying Options
Total Price: USD $7.54
Unit Price: USD $7.5416
≥1 USD $7.5416
≥10 USD $6.81736
≥100 USD $6.440192
≥500 USD $6.2832
≥1000 USD $5.969128
≥3000 USD $5.340746
Inventory: 1064
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mount Bulkhead, Front Side Nut, Panel
Mounting Type Panel Mount
Package / Case SMC
Mounting Feature Bulkhead - Front Side Nut
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 15.999989g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Brass
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2001
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Jack, Male Pin
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 335V
Fastening Type Threaded
Orientation Straight
Frequency 10GHz
Housing Color Gold
Impedance 50Ohm
Connector Style SMC
Number of Ports 1
Body Plating Gold
Frequency (Max) 10GHz
Mating Cycles 500
Contact Termination Crimp

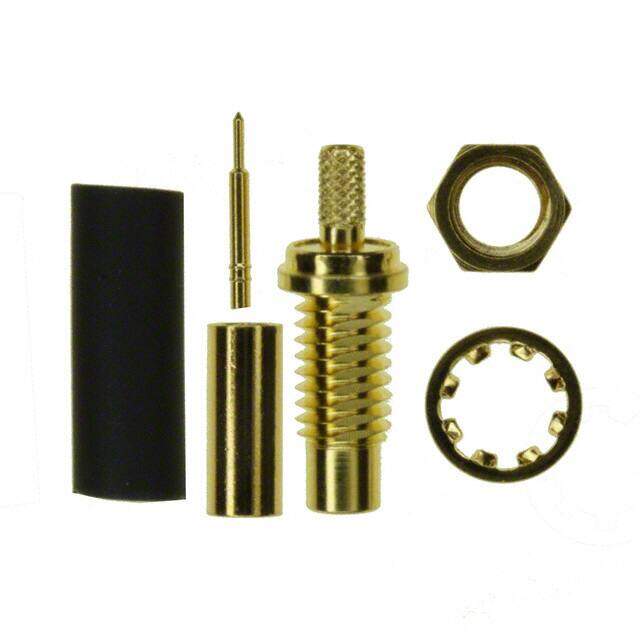

Includes 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Lockwasher, 1 Nut
Insertion Loss 0.3dB
Body Finish Gold
Cable Group RG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Shield Termination Crimp
Dimensions
Length 18mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
