152102
RoHS
RoHS compliant
RoHS compliantPackage SMC
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
Conn SMC RCP 0Hz to 10GHz 50Ohm Crimp ST Cable Mount Gold
PDF
/
Buying Options
Total Price: USD $5.35
Unit Price: USD $5.3504
≥1 USD $5.3504
≥10 USD $4.84088
≥100 USD $4.573184
≥500 USD $4.461776
≥1000 USD $4.238696
≥3000 USD $3.79251
Inventory: 62
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Package / Case SMC
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 1.700008g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Brass
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2001
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Jack, Male Pin
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 335V
Fastening Type Threaded
Orientation Straight
Frequency 10GHz
Housing Color Silver
Impedance 50Ohm
Connector Style SMC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 10GHz
Mating Cycles 500
Contact Termination Crimp

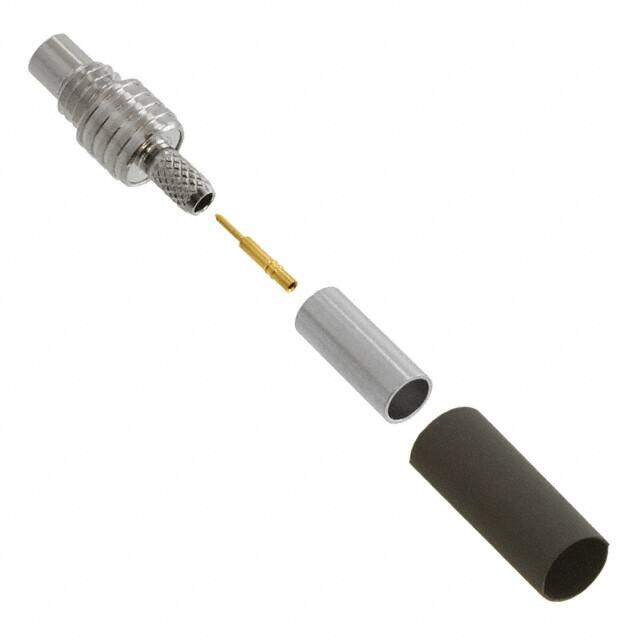

Includes 4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink
Insertion Loss 0.3dB
Body Finish Nickel
Cable Group RG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Shield Termination Crimp
Dimensions
Length 16mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
