142255
RoHS
RoHS compliant
RoHS compliantPackage SMB
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
SMB Connector Plug, Female Socket 50 Ohm Free Hanging (In-Line) Solder
PDF
/
Buying Options
Total Price: USD $6.65
Unit Price: USD $6.6528
≥1 USD $6.6528
≥10 USD $6.0148
≥100 USD $5.681632
≥500 USD $5.54312
≥1000 USD $5.266008
≥3000 USD $4.711722
Inventory: 716
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Package / Case SMB
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 3.799998g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Beryllium Copper
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2003
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Plug, Female Socket
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 335V
Fastening Type Snap-On
Orientation Straight
Frequency 4GHz
Housing Color Gold
Impedance 50Ohm
Connector Style SMB
Number of Ports 1
Body Plating Gold
Frequency (Max) 4GHz
Mating Cycles 500
Contact Termination Solder

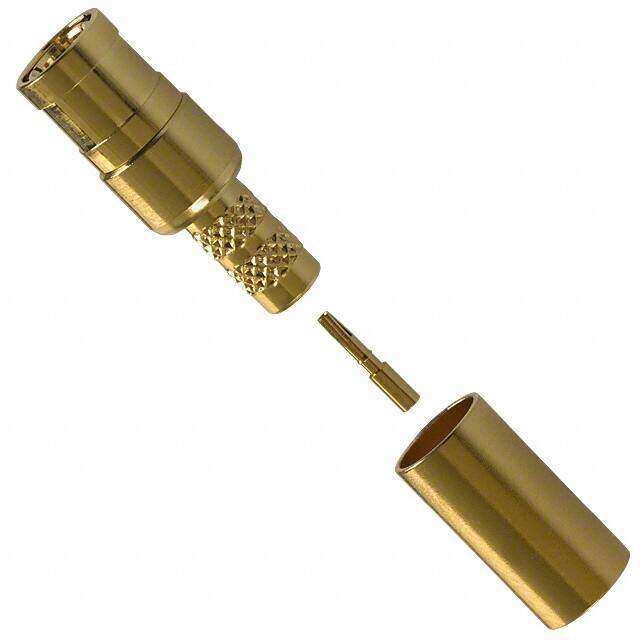

Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Insertion Loss 0.3dB
Body Finish Gold
Cable Group RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
Shield Termination Crimp
Dimensions
Length 20mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
