142254
RoHS
RoHS compliant
RoHS compliantPackage SMB
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
Conn SMB PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold
PDF
/
Buying Options
Total Price: USD $7.26
Unit Price: USD $7.26
≥1 USD $7.26
≥10 USD $6.53136
≥100 USD $6.152608
≥500 USD $5.994912
≥1000 USD $5.837216
≥3000 USD $5.206142
Inventory: 66
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Brass, Copper
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Package / Case SMB
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 3.799998g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Beryllium Copper
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2006
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Female Socket
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 335V
Fastening Type Snap-On
Orientation Straight
Frequency 4GHz
Housing Color Silver
Polarity Standard
Impedance 50Ohm
Connector Style SMB
Number of Ports 1
Body Plating Nickel
Frequency (Max) 4GHz
Mating Cycles 500
Contact Termination Solder

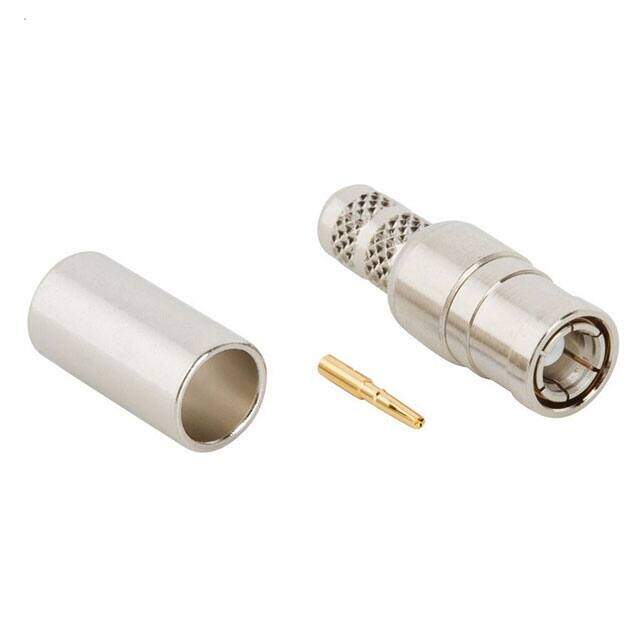

Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Insertion Loss 0.3dB
Body Finish Nickel
Cable Group RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
Shield Termination Crimp
Dimensions
Length 20mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
