142233

Amphenol RF
RoHS
RoHS RoHS compliant
Package SMB
Category Connectors, Interconnects / Coaxial Connectors (RF)

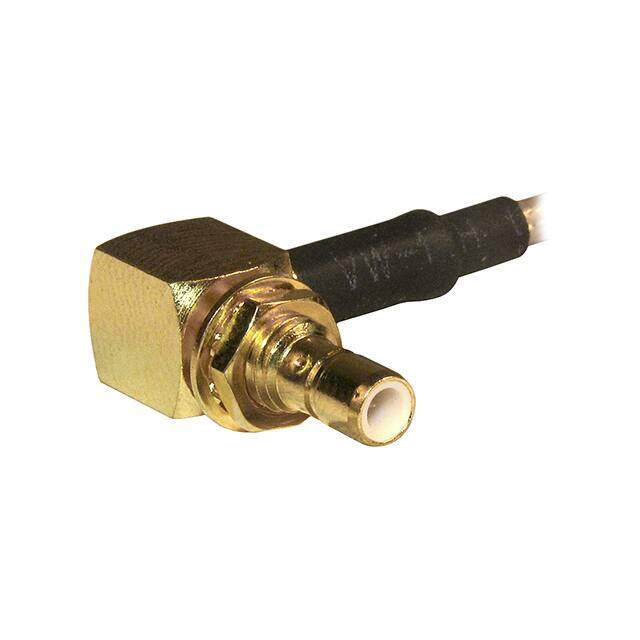

Description RF Connectors / Coaxial Connectors SMB R/A BULKHEAD JACK 316 GOLD
PDF
/
Buying Options
Total Price: USD $11.8
Unit Price: USD $11.8008
≥1 USD $11.8008
≥10 USD $10.4588
≥100 USD $10.05664
≥500 USD $9.65448
≥1000 USD $9.11812
≥3000 USD $8.313598
Inventory: 155
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Length 19mm

Technical

Shield Termination Crimp
Cable Group RG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Body Finish Gold
Insertion Loss 0.6dB
Includes 6 pcs - 1 Connector, 1 End Cap, 1 Ferrule, 1 Heat Shrink, 1 Lockwasher, 1 Nut
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 4GHz
Body Plating Gold
Number of Ports 1
Connector Style SMB
Impedance 50Ohm
Housing Color Gold
Frequency 4GHz
Orientation Right Angle
Fastening Type Snap-On
Voltage - Rated 335V
Gender Female
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Jack, Male Pin
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2007
Packaging Bulk
Operating Temperature -65°C~165°C

Physical

Center Contact Material Brass
Center Contact Plating Gold
Body Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Mounting Feature Bulkhead - Front Side Nut
Package / Case SMB
Mounting Type Panel Mount, Right Angle
Mount Bulkhead, Panel
Contact Plating Gold
Contact Material Brass, Copper

Supply Chain

Factory Lead Time 10 Weeks
