142231
RoHS
RoHS compliant
RoHS compliantPackage SMB
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
SMB Connector Jack, Male Pin 50 Ohm Panel Mount, Bulkhead - Front Side Nut Solder
PDF
/
Buying Options
Total Price: USD $6.2
Unit Price: USD $6.204
≥1 USD $6.204
≥10 USD $5.61088
≥100 USD $5.300768
≥500 USD $5.171584
≥1000 USD $4.912952
≥3000 USD $4.395802
Inventory: 309
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Brass, Copper
Contact Plating Gold
Mount Bulkhead, Front Side Nut, Panel
Mounting Type Panel Mount
Package / Case SMB
Mounting Feature Bulkhead - Front Side Nut
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 4.099993g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Brass
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2005
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Jack, Male Pin
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 335V
Fastening Type Snap-On
Orientation Straight
Frequency 4GHz
Housing Color Gold
Impedance 50Ohm
Connector Style SMB
Number of Ports 1
Body Plating Gold
Frequency (Max) 4GHz
Mating Cycles 500
Contact Termination Solder

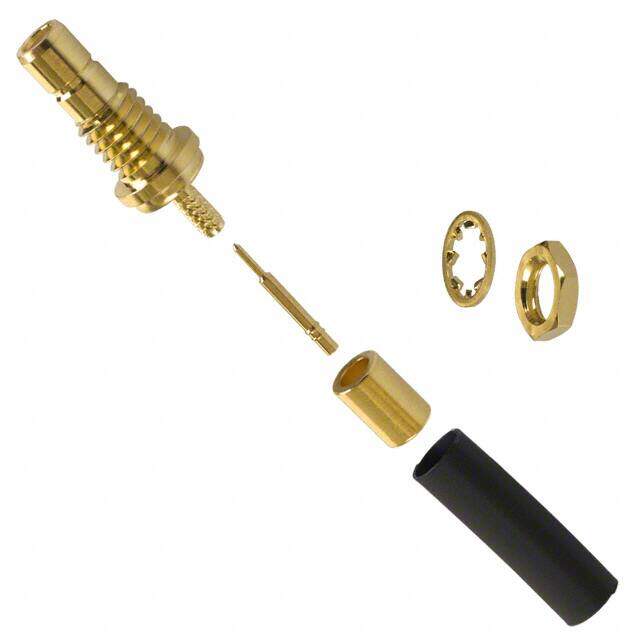

Includes 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Lockwasher, 1 Nut
Insertion Loss 0.3dB
Body Finish Gold
Cable Group RG-178, 178A, 178B, 196, 196A, M17/93-RG178
Shield Termination Crimp
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
