142208

Amphenol RF
RoHS
RoHS RoHS compliant
Package SMB
Category Connectors, Interconnects / Coaxial Connectors (RF)

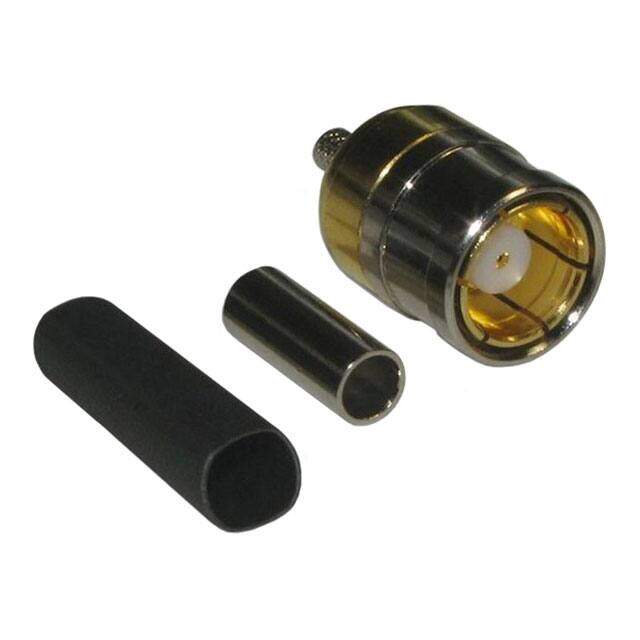

Description RF Connectors / Coaxial Connectors SMB ST CABLE PLUG B8218 75 OHM GOLD
PDF
/
Buying Options
Total Price: USD $11.21
Unit Price: USD $11.213545
≥1 USD $11.213545
≥10 USD $10.578817
≥100 USD $9.980018
≥500 USD $9.415113
≥1000 USD $8.88218
Inventory: 3449
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Technical

Shield Termination Crimp
Cable Group RG-122, 180, 180A, 180B, 195, Belden 1855, 1865A
Body Finish Gold
Insertion Loss 0.3dB
Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 4GHz
Body Plating Gold
Number of Ports 1
Connector Style SMB
Impedance 75Ohm
Housing Color Gold
Frequency 4GHz
Orientation Straight
Fastening Type Snap-On
Voltage - Rated 335V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Plug, Female Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2009
Packaging Bulk
Operating Temperature -65°C~165°C

Physical

Center Contact Material Beryllium Copper
Center Contact Plating Gold
Body Material Brass
Weight 4.20001g
Dielectric Material Polytetrafluoroethylene (PTFE)
Package / Case SMB
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Brass, Copper

Supply Chain

Factory Lead Time 9 Weeks
