142204-75
RoHS
RoHS compliant
RoHS compliantPackage SMB
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
Coaxial Connector
PDF
/
Buying Options
Total Price: USD $6.63
Unit Price: USD $6.6264
≥1 USD $6.6264
≥10 USD $5.99192
≥100 USD $5.66016
≥500 USD $5.522176
≥1000 USD $5.246032
≥3000 USD $4.693858
Inventory: 136
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Length 7mm
Technical
Shield Termination Solder
Body Finish Gold
Insertion Loss 0.3dB

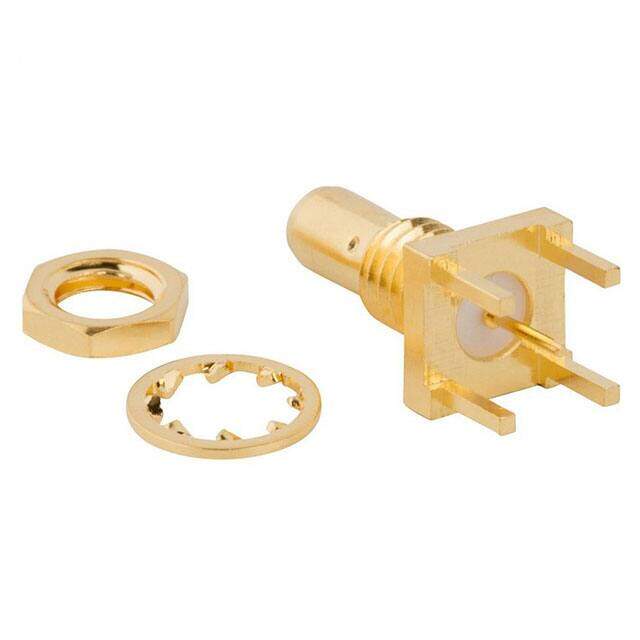

Includes 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 4GHz
Body Plating Gold
Number of Ports 1
Connector Style SMB
Impedance 75Ohm
Housing Color Gold
Frequency 4GHz
Depth 7mm
Orientation Straight
Fastening Type Snap-On
Voltage - Rated 335V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Receptacle, Male Pin
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2004
Packaging Bulk
Operating Temperature -65°C~165°C
Physical
Center Contact Material Brass
Center Contact Plating Gold
Body Material Brass
Weight 1.500002g
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Teflon
Mounting Feature Bulkhead - Front Side Nut
Package / Case SMB
Mounting Type Panel Mount, Through Hole
Mount Bulkhead, PCB, Panel, Through Hole
Contact Plating Gold
Contact Material Brass
Supply Chain
Factory Lead Time 10 Weeks
