142195
RoHS
RoHS compliant
RoHS compliantPackage SMB
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
SMB Connector Plug, Female Socket 50 Ohm Free Hanging (In-Line), Right Angle Solder
PDF
/
Buying Options
Total Price: USD $11.49
Unit Price: USD $11.4928
≥1 USD $11.4928
≥10 USD $10.186
≥100 USD $9.7944
≥500 USD $9.402624
≥1000 USD $8.880256
≥3000 USD $8.096704
Inventory: 106
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line), Right Angle
Package / Case SMB
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 5.666673g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Beryllium Copper
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2007
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Female Socket
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 335V
Fastening Type Snap-On
Orientation Right Angle
Frequency 4GHz
Housing Color Gold
Impedance 50Ohm
Connector Style SMB
Number of Ports 1
Body Plating Gold
Frequency (Max) 4GHz
Mating Cycles 500
Contact Termination Solder

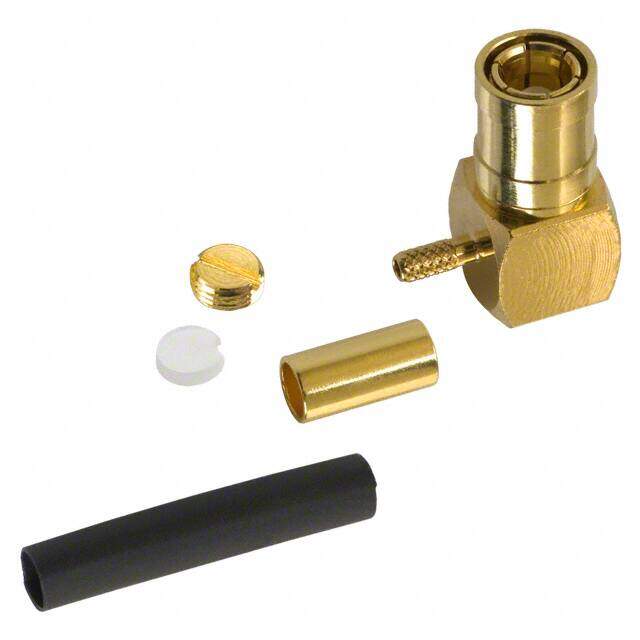

Includes 4 pcs - 1 Connector, 1 End Cap, 1 Ferrule, 1 Heat Shrink
Insertion Loss 0.6dB
Body Finish Gold
Cable Group RG-178, 178A, 178B, 196, 196A, M17/93-RG178
Shield Termination Crimp
Dimensions
Length 14.7mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
