142193
RoHS
RoHS compliant
RoHS compliantPackage SMB
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

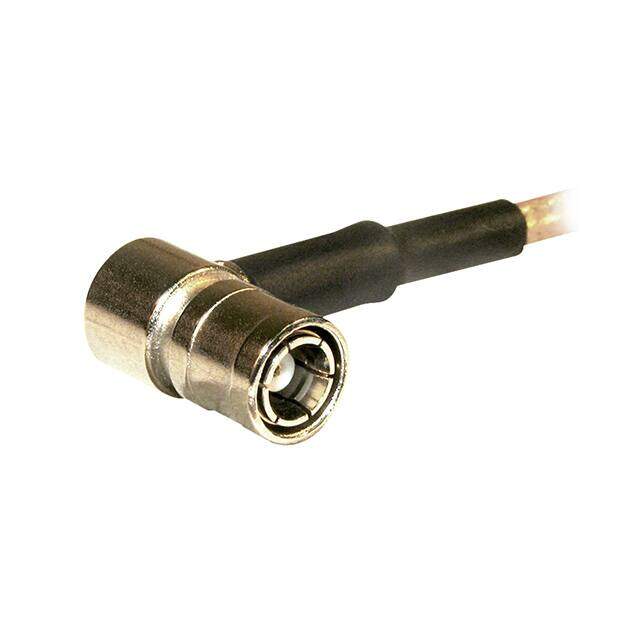

RF Connectors / Coaxial Connectors SMB R/A PLUG 316/174 50 OHM NICKEL DC
PDF
/
Buying Options
Total Price: USD $6.72
Unit Price: USD $6.7232
≥1 USD $6.7232
≥10 USD $6.07552
≥100 USD $5.73936
≥500 USD $5.59944
≥1000 USD $5.319424
≥3000 USD $4.759506
Inventory: 87
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Brass, Copper
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line), Right Angle
Package / Case SMB
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Brass
Center Contact Plating Gold
Center Contact Material Beryllium Copper
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2008
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Female Socket
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 335V
Fastening Type Snap-On
Orientation Right Angle
Frequency 4GHz
Housing Color Silver
Impedance 50Ohm
Connector Style SMB
Number of Ports 1
Body Plating Nickel
Frequency (Max) 4GHz
Mating Cycles 500
Contact Termination Solder
Includes 4 pcs - 1 Connector, 1 End Cap, 1 Ferrule, 1 Heat Shrink
Insertion Loss 0.6dB
Body Finish Nickel
Cable Group RG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Shield Termination Crimp
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
