142191-75
RoHS
RoHS compliant
RoHS compliantPackage SMB
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
CONN MINI SMB JACK STR 75 OHM
PDF
/
Buying Options
Total Price: USD $6.85
Unit Price: USD $6.8464
≥1 USD $6.8464
≥10 USD $6.19432
≥100 USD $5.851296
≥500 USD $5.708736
≥1000 USD $5.423264
≥3000 USD $4.852434
Inventory: 244
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Brass, Copper
Mount Bulkhead, Front Side Nut, Panel
Mounting Type Panel Mount
Package / Case SMB
Mounting Feature Bulkhead - Front Side Nut
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Brass
Center Contact Plating Gold
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2003
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Jack, Male Pin
Voltage - Rated 335V
Fastening Type Snap-On
Total Number of Contacts 1
Orientation Straight
Frequency 4GHz
Reliability COMMERCIAL
Body Depth 0.438 inch
Polarity Standard
Contact Style COAX
Impedance 75Ohm
Connector Style SMB, Mini
Number of Ports 1
Mating Cycles 500
Contact Termination Crimp
Insulator Color NATURAL

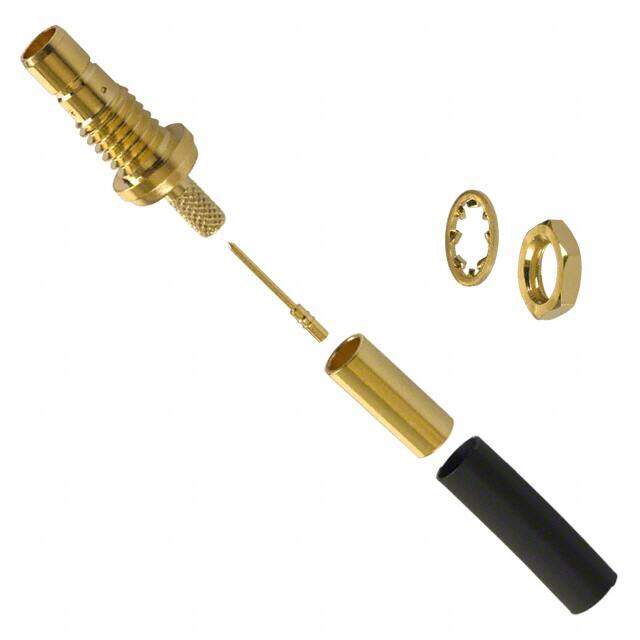

Includes 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Lockwasher, 1 Nut
Insertion Loss 0.3dB
Cable Group RG-179, 187
Dimensions
Length 18mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
